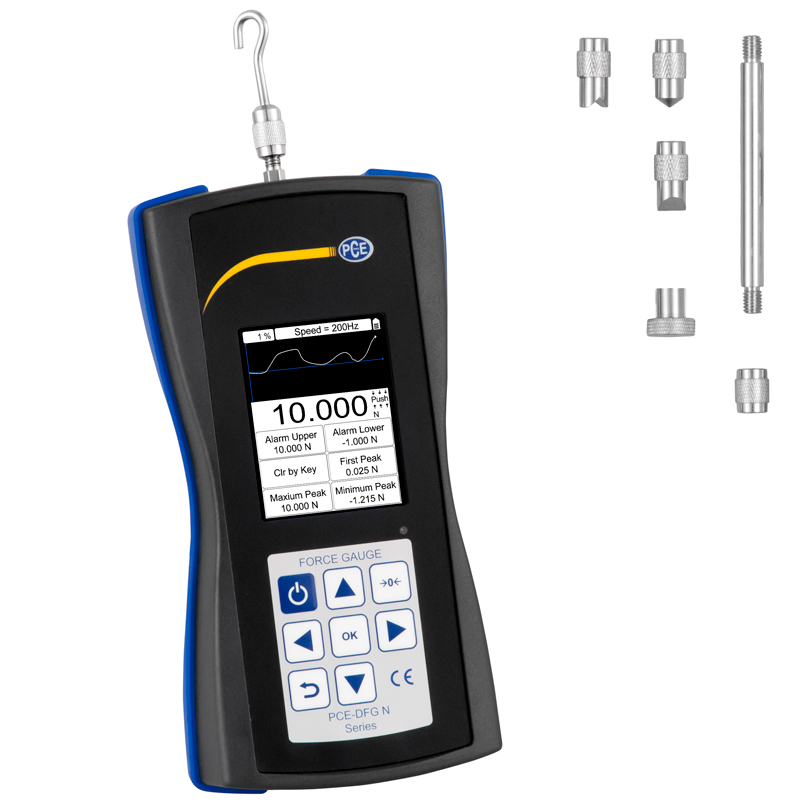

PCE DFG N 10 Force Gauge (0 ~10 N; 0,005 N)

Measuring range: 0 ... 10 N, 0 ... 2.25 lbs

Accuracy: ± 0.1% of the measuring range

Resolution: 0.005 N

Measurement units: N, kg, lb, KPa

Display: 2.8" TFT graphic display

Alarm Modes: Inside, Outside, Crack, Shutdown

Sampling rate: 6 ... 1600 Hz

Storage: 100 measurements

Power supply: NiMh battery 6V / 1600-mAh

Battery life: About 10 hours

Charging adapter: 12V / 1A

Outputs: Interface: USB

Switching output: 12V / 50-mA

Protection class: IP 54

Operating and storage conditions: -10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing

Force-receiving piece: M6 x 7 mm

Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in

Weight: 540 g / 1.2 lbs

Delivery Scope:

1 x PCE-DFG N 10 Force gauge

1 x Chisel head adapter

1 x Flat head adapter

1 x Pointed head adapter

1 x Hook adapter

1 x Notched head adapter

1 x Extension bar (90 mm / 3.5 in)

1 x PC software

1 x USB data cable

1 x Power supply

1 x Carrying case

1 x User manual
