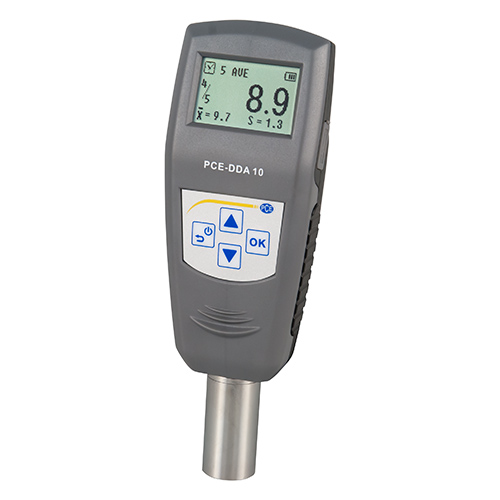

PCE DDA 10 Durometer (0~100 Shore A)

Measurement range: 0 ... 100 Shore A

Resolution: 0.1

Accuracy: < ± 1

Indenter: 35°± 0.25°

Memory: Saves up to 500 measurements

Dimensions: 153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)

Weight: Approx. 300 g / < 1 lb

Power supply: 3.6V rechargeable Ni-MH battery

Max. operating time: Up to 20 h continuous use at full charge

Charging time: Approx. 3 h

Standards: GB/T 531.1, ISO 7619-1, ASTM D 2240

Delivery Scope:

1 x PCE-DDA 10 Shore A durometer

1 x Calibration plate

1 x Charger / AC power adapter

1 x Mini USB cable

1 x User manual

1 x Carrying case

Note: Software is available for download from this website.
