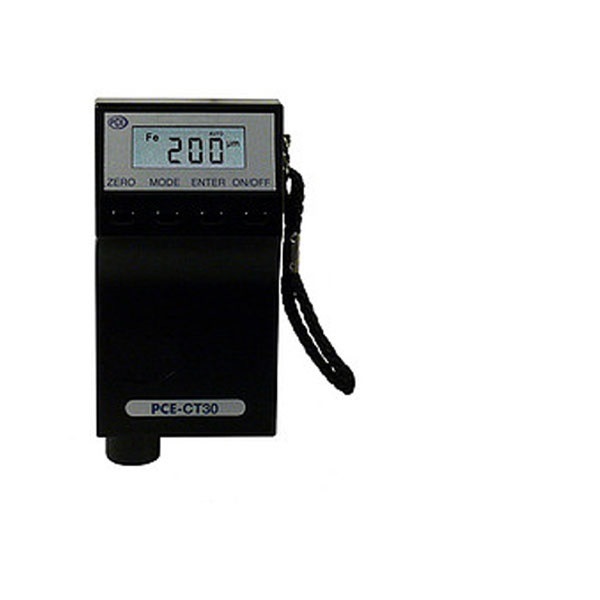

PCE CT 30 Thickness Meter
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Manufacturer:PCEUK Warranty: 12months Measurement range | 0 to 3500 µm respectively |
| Measurement values | from 0.0 to 999 µm from 1.00 to 3.50mm |
| Meter | ferrous and non-ferrous surfaces |
| Resolution | 0.1 µm in the range 0.0 to 99.9 µm 1 µm in the range 100 to 999 µm 0.01 mm in the range 1.00 to 3.50 mm respectively 0.01 mils in the range 0.00 to 9.99 mils 0.1 mils in the range 10.0 to 99.0 mils 1.0 in the range 100 to 140 mils |
| Accuracy of repeat measurements | ±(1µm +2%) of 0 to 999 µm ±3.5% of 1001 to 3500 µm |
| Minimum area of measurement | 10 x 10mm |
| Minimal radial curvature | convexed: 5 mm; concaved: 30mm |
| Minimum base material thickness | type F: 0.2mm type N: 0.05mm |
| Display | LCD with 4 digits |
| Operating temperature | 0 to 60°C |
| Power | 9V battery (included) |
| Dimensions | 118 x 58 x 38mm |
| Weight | 150g with battery |
Delivery contents
1 x PCE-CT 30 Thickness Meter
1 x set of calibration standards
1 x carrying case
1 x 9 V battery
1 x user manual
