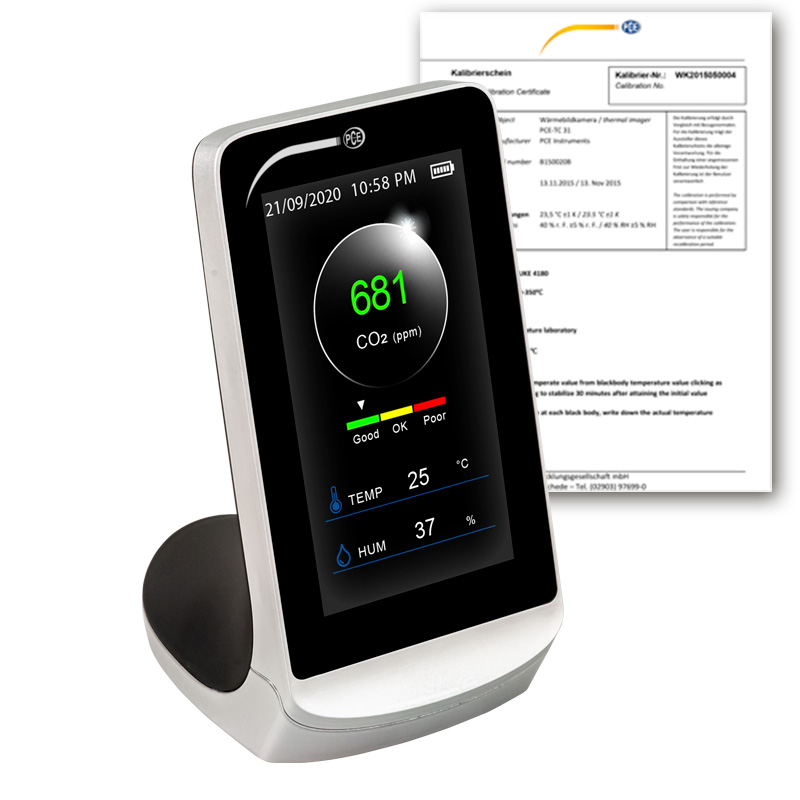

PCE CMM 5-ICA Carbon Dioxide Meter (CO2: 400~5000 ppm, incl. ISO Calibration Certificate)

Measured variable CO2

Measuring range: 400~5000 ppm

Accuracy: ± 75ppm or ±5% of measured value (whichever is greater)

Resolution: 1ppm

Sensor type CO2: NDIR Sensor

Measured variable temperature

Measuring range: -10~50°C / 14~122°F

Accuracy: ±1°C/1.8°F

Resolution: 1°C/1.8°F

Measured variable air humidity

Measuring range: 20~95% r.H.

Accuracy: ±4% r.H.

Resolution: 1% r.H.

Sampling rate: 1.5 s

Display: 4.3" LCD Display

Battery life: ca. 6 h

Charging time: ca. 2 h

Ambient conditions: -10°C ~50°C/14~122°F, 20%~85% r.H.

Dimensions: 145 x 78 x 97.2 mm/5.7 x 3.1 x 3.8 in

Weight: 210g/<1 lb

Delivery Scope:

1 x Carbon Dioxide Meter PCE-CMM 5-ICA

1 x Instruction manual

1 x ISO Calibration Certificate (for CO2 only)

N.B. The device must be charged via the micro USB port. To do this, use the supplied USB charging cable or a USB power supply with 5 V / 1000 mA. Charging via a 500 mA port on a computer is not possible.
