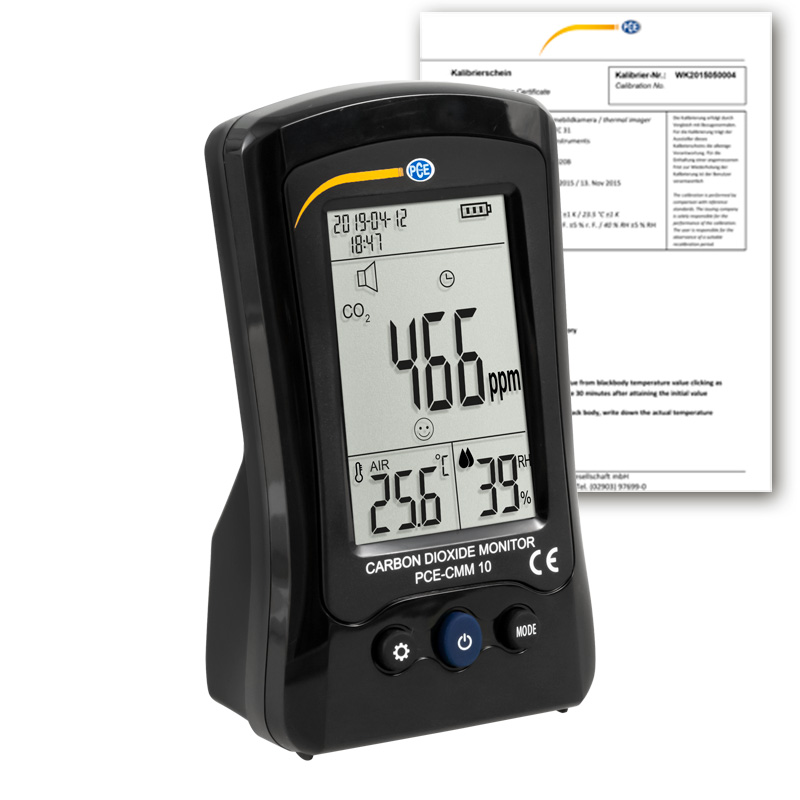

PCE CMM 10-ICA Carbon Dioxide Meter (400~5000 ppm, incl. ISO Calibration Certificate)

Measuring range CO2: 400~5000 ppm

Resolution: 1 ppm

Accuracy: ± (5% + 50 ppm) between 400 ... 2000 ppm and an atmospheric pressure of 1013 mbar

Measuring range temperature: -10.0 ... 50.0°C / 14 ... 122°F

Resolution: 0.1°C / 0.18°F

Accuracy: ± 1°C / 1.8°F (can be influenced by its own waste heat)

Measuring range humidity: 0 ... 99% rh

Resolution: 1% rh

Accuracy: ± (5% at 25°C / 77°F) between 10 ... 90% rh

Sensor: NDIR principle

ABC: Automatic baseline correction

Audio alarm: Buzzer

Visual alarm: Red backlight

Display: 3 inch LC display

battery indicator: Four-level display

display frequency: 3 seconds

Automatic shutdown: turns itself off after 2 hours

Backlight: White backlight

Working conditions: 0 ... 50°C / 32 ... 122°F, 0 ... 85% rh

Storage conditions: -20 ... 60°C / -4 ... 140°F, 0 ... 95% rh

Power supply: Built-in 3.7V DC battery

Weight: 195 g / < 1 lb

Dimensions: 75 x 55 x 130 mm / 3 x 2.2 x 5.1 in

Delivery Scope:

1 x CO2 Analyser PCE-CMM 10-ICA

1 x USB cable

1 x User manual

1 x ISO Calibration Certificate (for CO2 only)

Datasheet

Manual
