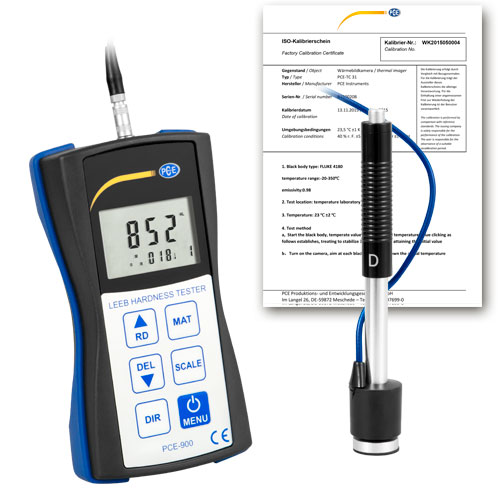

PCE 900 Metal Hardness Tester (200~900 HL, ± 0.8%)

Measuring range: 200 ... 900 HL

Measuring accuracy: ± 0.8% at HLD=900

Materials: 9 common material presets

Hardness scales: Leeb: HL

Rockwell C: HRC

Rockwell B: HRB

Brinell: HB

Vickers: HV

Shore: HSD

Display: 12.5 mm / 0.5" LCD with backlight

Impact probe: Type D

Memory: 50 data sets

Interface:RS-232

Power supply:4 x 1.5V AAA batteries

Environmental conditions:

Operating temperature: -10 ... 50°C / 14 ... 122°F

Storage temperature: -30 ... 60°C / -22 ... 140°F

Relative humidity: < 90%

Dimensions: 142 x 77 x 40 mm / 5.59 x 3.03 x 1.58 in

Weight: Device weight: ca. 130 g / < 1 lb

Probe weight: 75 g / < 1 lb

Cable length: ca. 1.2 m / 3.9 ft

Delivery contents:

1 x Surface Testing for Metal PCE-900

1 x Impact probe Type D

1 x Test block

1 x Support ring

1 x Cleaning brush

1 x Carrying case

1 x User manual
