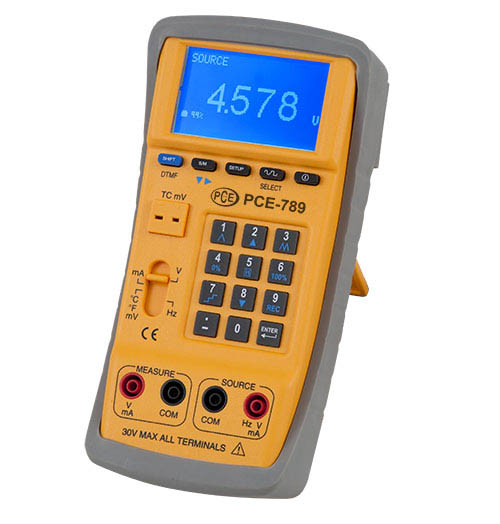

PCE 789 Multifunction Calibrator

Name: PCE 789 Multifunction Calibrator
Brand: PCE

Model789

P/NPCE-789

OriginTaiwan

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Technical Specifications

Magnitud	Range	Resolution	Accuracy
Generate / Simulate
Current (no charge voltage >15 V)	-4 ... -0,005 mA	1 µA	± (0,03 % + 5 digits )
	0,005 ... 4 mA	1 µA	± (0,03 % + 5 digits )
	4 ... 20 mA	1 µA	± (0,03 % + 5 dgits )
	20 ... 24 mA	1 µA	± (0,03 % + 5 digits )
Voltage (max 1 mA)	-3 ... -0,005 V	1 mV	± (0,03 % + 5 digits )
	0,005 V ... 10 V	1 mV	± (0,03 % + 5 digits )
	10 V ... 15 V	1 mV	± (0,03 % + 5 digits )
	-10 ... 70 mV	0,01 mV	0,05 mV
Termocouples Types: K, J, E, T, R, S, N, L, U, B, C	according to type (see use intructions)	0,1 °C	according to type (see use intructions)
Frequency	0,3 ... 99,999 Hz	0,1 Hz	0,002 Hz
	10,00 ... 999,99 Hz	0,1 Hz	0,02 Hz
	1000,0 ... 9999,9 Hz	0,1 Hz	0,2 Hz
	10000 ... 20000 Hz	0,1 Hz	2 Hz
Mesurement
Current	-4 ... -0,005 mA	1 µA	± (0,03 % + 5 digits )
	0,005 ... 4 mA	1 µA	± (0,03 % + 5 digits )
	4 ... 20 mA	1 µA	± (0,03 % + 53gits )
	20 ... 24 mA	1 µA	± (0,03 % + 5 digits )
Voltage	-3 ... 0,005 V	1 mV	± (0,03 % + 5 digits )
	0,005 V ... 10 V	1 mV	± (0,03 % + 5 digits )
	10 V ... 15 V	1 mV	± (0,03 % + 5 digits )
Termocouples Types: K, J, E, T, R, S, N, L, U, B, C	according to type (see use intructions)	0,1 °C	according to type (see use intructions)

General observations

Power supply: internal acumulator o mains adapter

Dimensions: 214,0 x 98,7 x 56,0 mm

Weight: 650 g

Environmental conditions: Operating: 0 ... 50 °C, 85 % R.H.., Stored: -20 ... 60 °C, 75 % R.H..
