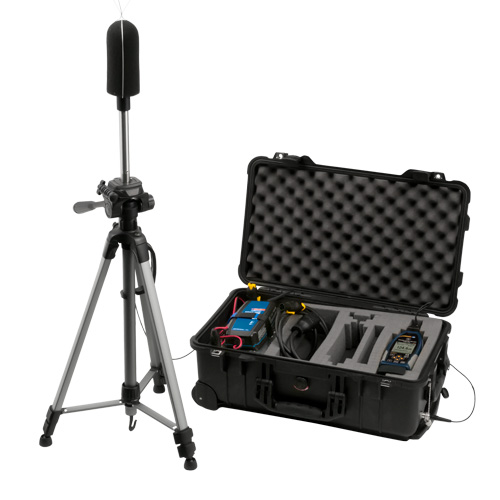

PCE 432-EKIT-ICA Outdoor Sound Level Meter Kit (22~136db (A); ISO Calibration Certificate)

Measuring range: 22 ... 136 db(A)

Accuracy: Class 1

Frequency range: 3 Hz ... 20 kHz

Standards: GB/T 3785.1-2010, GB/T 3785.2-2010, IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983, ANSI S1.43-1997

Frequency analysis: 1/1 Octave band filter: 8 Hz ... 16 kHz

1/3 Octave band filter: 6.3 Hz ... 20 kHz

Microphone: 1/2"

Microphone Class: 1

Sensitivity: 40 mV/PA

Frequency range: 3 Hz ... 20 kHz

Connection: TNC

Power supply: ICCP Standard

Data-logging interval: 1 s ... 24 h (adjustable)

Time weightings: Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms

AD converter: 24 Bit

Sample rate: Standard: 48 kHz

LN Mode: 20 ms

Measuring display: Numerical, Bar graph, Graphical

Display: 160 x 160 pixel LCD with backlight

Memory: 4 GB Micro SD card

Interface: USB (Memory readable via software or directly as mass storage), RS-232

Voltage output: AC 5V RMS

DC 10 mV/db

GPS: Yes, GPS receiver for location determination

Power supply: 4 x 1.5 V AA Batteries

12 V / 1 A Power plug

5 V / 1 A USB

Battery life: Min. 10 h continuous use

Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)

Weight: Approx. 620 g / 1.4 lbs incl. batteries

Delivery Scope:

1 x Sound Level Meter PCE-432-EKIT incl. Outdoor Noise Level Meter Kit

1 x 1/2" measurement microphone class 1

1 x Wind noise suppression (foam ball)

1 x USB interface cable

1 x Software is a free download

1 x Power adapter

1 x Suitcase

1 x User manual

1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT

1 x Waterproof PELI transport case

1 x Wind and rain protection for microphone of the PCE-4xx series

1 x Charger for internal batteries

2 x 12 V lead gel batteries

1 x Tripod

1 x 2 m / 6ft 6" microphone cable

1 x Connection cable for power supply (optional Schuko or US connection)

1 x ISO calibration certificate
