Measuring ranges: 170 ... 960 HLD
17.9 ... 69.5 HRC
19 ... 683 HB
80 ... 1042 HV
30.6 ... 102.6 HS
59.1 ... 88 HRA
13.5. .. 101.7 HRB
Impact device included: D
(optional impact devices): (DC, D + 15, C, G, DL)
Cable length impact device: About 1.5 m / 4.9 ft
Accuracy: ± 0.5% (@ 800 HLD)
Repeatability: 0.8% (@ 800 HLD)
Hardness scales: HL (Leeb)
HV (Vickers)
HB (Brinell)
HS (Shore)
HRA (Rockwell A)
HRB (Rockwell B)
HRC (Rockwell C)
Measurable materials: Steel; Cast steel;Alloy steel; Stainless steel; Gray glacé; Ductile iron; Cast aluminum alloy; Cu-zinc (brass); Copper-tin alloy; Copper
Display resolution: 128 x 64 pixel OLED
Data storage: 600 averages in 6 data groups
Data output: USB stick
Power supply: 3 x AA 1,5V-batteries
Auto Power-Off: if not in use, the device shuts off automatically after 12 minutes
Operating conditions: 10 ... 50°C / 50 ... 122°F, 20 ... 90% rh
Storage conditions: -30 ... 60°C / -22 ... 140°F
Dimensions: 160 x 80 x 40 mm / 6.3 x 3.1 x 1.6 in (H x W x D)
Weight: Measuring device with batteries: approx. 300 g / < 1 lb
Impact device: approx. 75 g / < 1 lb
Delivery Scope:

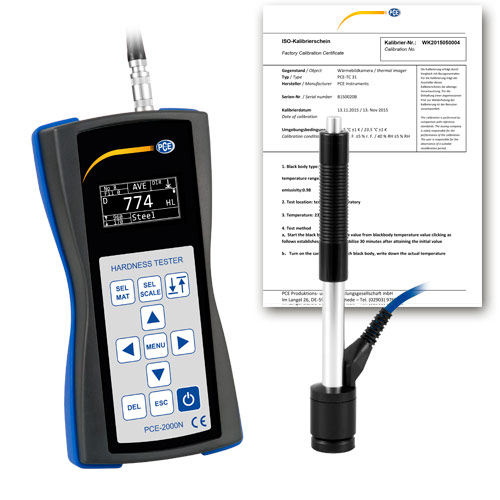

1 x Durometer PCE-2000N-ICA
1 x Hardness comparison block
1 x Striker type D
1 x Transport case
1 x Cleaning brush
1 x User manual
3 x AA 1,5V-batteries
2 x Stabilization ring
1 x 2 GB USB stick
1 x ISO calibration certificate
