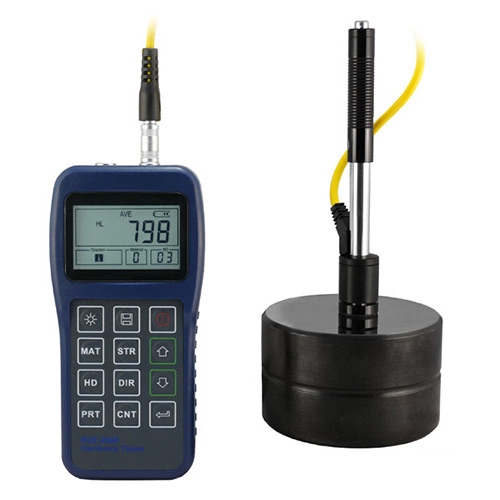

PCE 2000 Metal Hardness Tester (0.005 μm~16 μm,<± 10%)

Manufacturer: PCE-ANH

Model : PCE-2000

Warranty : 12 months

Specification

Steel / Cold-rolled steel:

HRA: 59.1 ... 85.8

HRC: 20 ... 68.5

HRB: 38.4 ... 99.6

HB: 127 ... 651

HSD: 32.2 ... 99.5

HV : 83 ... 976

Alloyed tool steel:

HRC: 20.4 ... 67.1

HV: 80 ... 898

Stainless steel

HRB: 46.5 ... 101.7

HB: 85 ... 655

HV: 85 ... 802

Cast iron:HB: 93 ... 334

Ductile iron:HB: 131 ... 387

Cast aluminum:HRB: 23.8 ... 84.6

HB: 19 ... 164

Brass:HRB: 13.5 ... 95.3

HB: 40 ... 173

Bronze:HB: 60 ... 290

Copper:HB: 45 ... 315

Accuracy:± 1.0 % (at L = 800, repeatability: ± 6 L)

Statistics:Automatic averaging

Data interface:RS-232 port

Memory:Internal, with storage for up to 100 data sets (measured value, material, ...)

Impact device:Type D (external probe with 1.5 m / 4.92 ft long cable)

Max. hardness:976 HV

Material sample radius (convex / concave):Rmin ≈ 30 mm / 1.18 in (with optional accessories, ≈ 10 mm / 0.4 in)

Minimum weight of the material sample:2 kg / 4.41 lb on stable support / (0.05 kg / 0.12 lb with coupling gel - gel not included)

Minimum thickness of the material sample:3 mm / 0.12 in with coupling gel - gel not included

Minimal hardening depth:0.8 mm / 0.032 in

Display:LCD

Power supply:2 x AA batteries

Operating temperature range:0 ... 40°C / 32 ... 104°F

Device dimensions:Approx. 150 x 74 x 32 mm / 5.91 x 2.92 x 1.26 in

Device weight:Approx. 245 g / < 1 lb

Delivery contents

1 x PCE-2000 metal hardness tester (with type D impact device on external probe with 1.5 m / .06 in long cable)

1 x Test block

1 x PC-compatible software

1 x Data cable

1 x Cleaning brush

1 x User manual

1 x Carrying case
