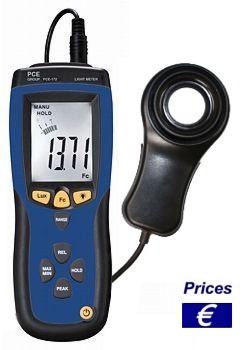

PCE 174 Illuminometer

Technical Specifications

Ranges

400.0/4000/lux
40.00/400.0 klux
40.00/400.0/4000/fc
40.00 kfc

Resolution

0.1/1/10/100 lux
0.01/0.1/1/10 FootCandle

Accuracy

±5% of reading ±10 digits (<10,000 lux)
±10% of reading ±10 digits (>10,000 lux)

Repeatability

±3%

Memory

16,000 readings

Rate of measurement

between 2 seconds and 99 seconds

Overload indicator

OL = Overload

Screen refresh rate

1.5 per second

Operating conditions

0 to 40ºC/80% r.h.

Display

3¾ digit LCD

Power

9 V battery

Dimensions

Device: 203 x 75 x 50 mm
(width x height x depth)
Light sensor: 115 x 60 x 20 mm
(width x height x depth)
Cable length: 150 cm

Weight

280 g

Standards

Safety: IEC-1010-1; EN 61010-1
EMV: EN 50081-1; EN 50082-1 corresponding to DIN 5031; DIN 5032
