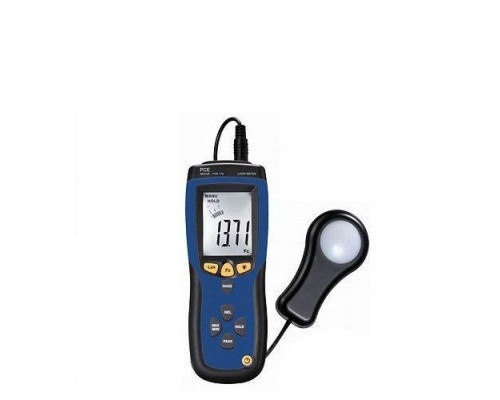

PCE 172 Luxmeter (400.000Lux)

Ranges

400,0 / 4000 / lux
40,00 / 400,0 klux

(1klux = 1000 Lux)
40,00 / 400,0 / 4000 / fc
40,00 kfc (1kfc = 1000 fc)

Resolution

0,1 / 1 / 10 / 100 lux
0,01 / 0,1 / 1 / 10 FootCandle

Accuracy

±5% of reading ±10 digits (<10,000 lux)
±10% of reading ±10 digits (>10,000 lux)

Repeatability

±3%

Overload indicator

OL = Overload

Screen refresh rate

1.5 per second

Operating conditions

0 to 40ºC / 80% r.h.

Display

3¾ digit LCD

Power

9V battery

Dimensions

Device: 203 x 75 x 50mm
(width x height x depth)
Light sensor: 115 x 60 x 20mm
(width x height x depth)
Cable length: 150cm

Weight

280g

Standards

Safety: IEC-1010-1; EN 61010-1
EMV: EN 50081-1; EN 50082-1 corresponding with DIN 5031; DIN 5032
