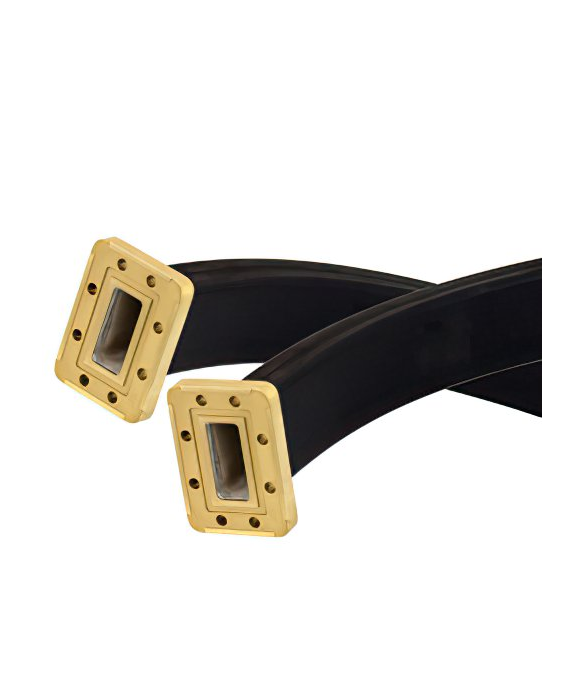

Pasternack PE-W137TF006-24 Twistable Flexible Waveguide

Frequency Range: 5.85 GHz(Minimum), 8.2 GHz(Max)

VSWR: 1.05:1

Insertion LosSS: 0.14 dB (Typical)

Input Power: 2 KWatts

Peak Power: 500 KWatts

Waveguide Size: WR-137

Waveguide Design: Twistable

Section Length: 24 [in (609.6 mm]]

E-Plane Minimum Bend Radius, One Time: 4 in [101.6 mm]

E-Plane Minimum Bend Radius, Repeated: 16 in [406.4 mm]

H-Plane Minimum Bend Radius, One Time: 8 in [203.2 mm]

H-Plane Minimum Bend Radius, Repeated: 32 in [812.8 mm]

Maximum Offset Rotation, One Time: 64 degrees/ft

Maximum Offset Rotation, Repeated: 16 degrees/ft

Maximum Operating Pressure: 30 psig
