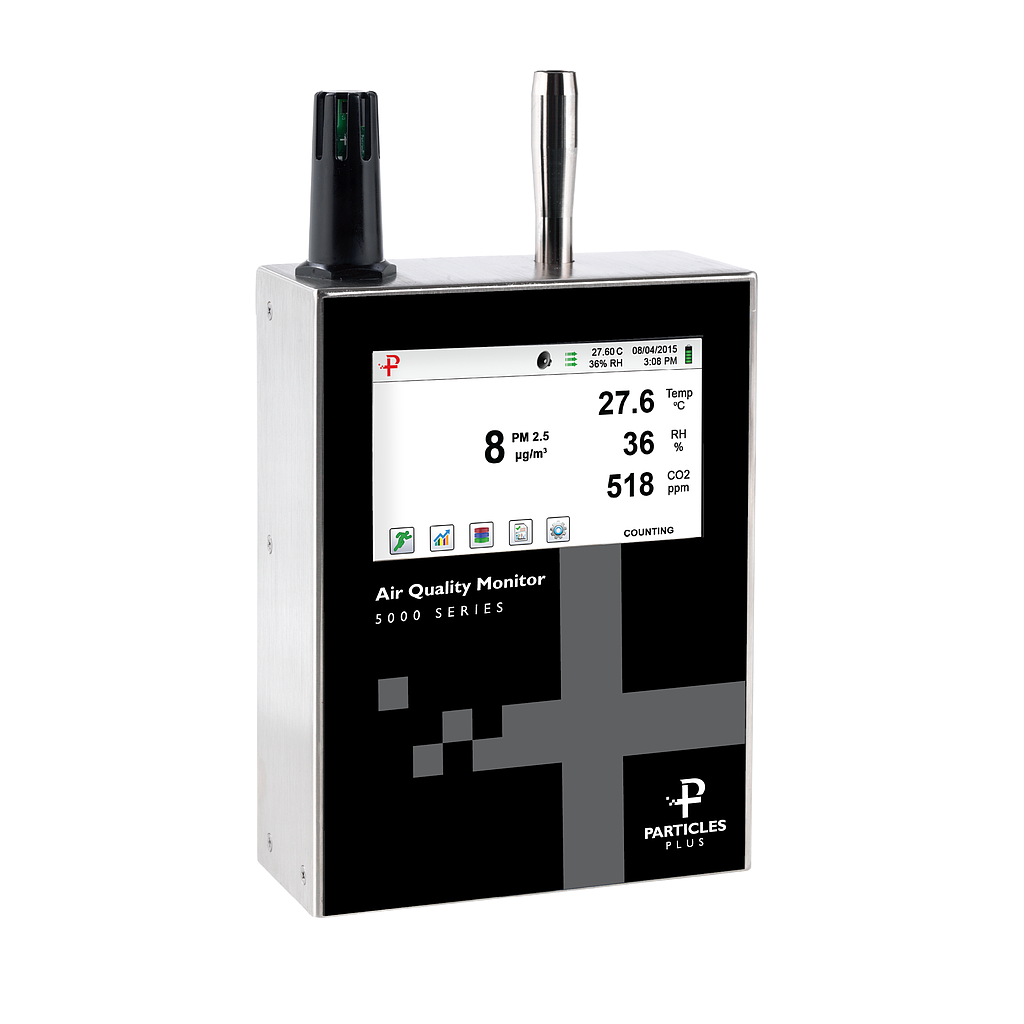

Particles Plus 5301-AQM2 Remote Airborne Particle Counter (0.3 ~ 25 μm)

Size Range: 0.3 to 25 μm

Size Channels: Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning

Flow rates / Accuracy: 0.1 CFM (2.83 LPM) / ± 3% or 1.2 LPM ± 3%

Concentration Limits: 15,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), 30,000,000 particles/ft3 @ 10% coincidence (as tested and validated1)

Aerosol Concentration Range: 0.01 to 20,000 μg/m³

Light Source: Long life laser diode

Resolution: 0.00003 μg/m3

Counting Efficiency: 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS

Zero Count: <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction. No appreciable drift.

Count Modes: Particles/second, Real-Time Meter, cumulative/differential count/m³ and count/ft³, and mass concentration (PM)

Count Alarms: 1 to 9,999,999 counts

Calibration: NIST traceable

Display: 4.3″ (10.9 cm) WQVGA (480×272) color touch screen

Optional Printer: External thermal printer available

Vacuum Source: Internal pump with automatic flow control

Filtered Exhaust: Internal HEPA filter

Number of Channels: 6

Custom Size Channels: Calibration for custom size channels available

Audible Alarm: Adjustable built-in alarm

Communication Modes: Ethernet, USB, Wireless 802.11 b/g (Optional), RS485 or RS232

Environmental Sensors (AQM1): Includes NDIR CO2 (0-5000 ppm, resolution 1 ppm, accuracy ±1% FS, Response rate 20 seconds), temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% RH

Environmental Sensors (AQM2): Includes all sensors in the 5301-AQM1 and TVOC PID (standard on the 5301-AQM2), 0-50 ppm / minimum detection level 5 ppb, accuracy ±1.5%, Response rate <3 seconds

Alarm: Alarms for particle counts (any size channel), sensor failure, environmental sensors, and flow rate

Standards: ISO 21501-4 and JIS B9921

Instrument Calibration: Recommended minimum once per year. Gases, temperature and humidity sensors field calibratable.

External Surface: Stainless steel

Dimensions (L x W x H): 5.22 x 3.81 x 9.42 in (13.3 x 9.7 x 23.9 cm) includes barb fittings

Weight: 4 lb (1.8 kg)

Accessories: User manual + Instrument Management Software (IMS) on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, USB cable, and power supply

Optional Accessories: Printed manual, carrying case, external printer, barbed fittings, and sample tubing

Data Storage: 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout.times. Scrollable on screen or printout

Sample Time: 1 second to 99 hours

Power: 110 to 240 VAC 50/60 Hz universal in-line power supply

Operating Conditions: 41-104ºF (5-40ºC) / 20% to 95% non-condensing

Storage Conditions: 32-122ºF (0-50ºC) / Up to 98% non-condensing
