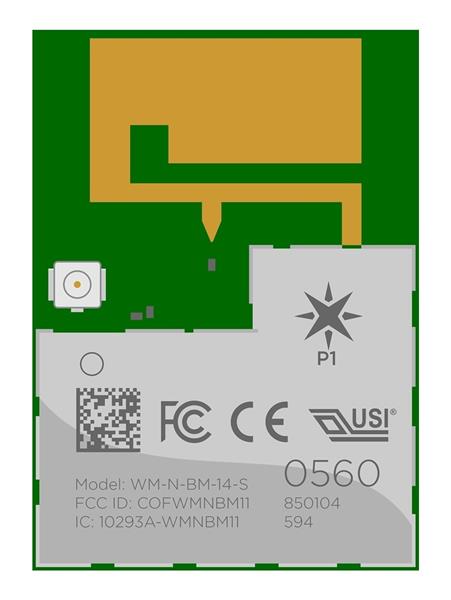

Particle P1mod10 WiFi Modules

Data Rate: 54 Mb/s

Frequency: 2.412 GHz to 2.462 GHz, 2.412 GHz to 2.472 GHz

Dimensions: 28 mm x 20 mm x 2 mm

Unit Weight: 32.487 g

Interface Type: Serial

Moisture Sensitive: Yes

Protocol Supported: 802.11 b/g/n

Modulation Technique: 16 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: PCB

Operating Supply Voltage: 3 V to 3.6 V

Supply Current Receiving: 80 mA

Supply Current Transmitting: 80 mA

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
