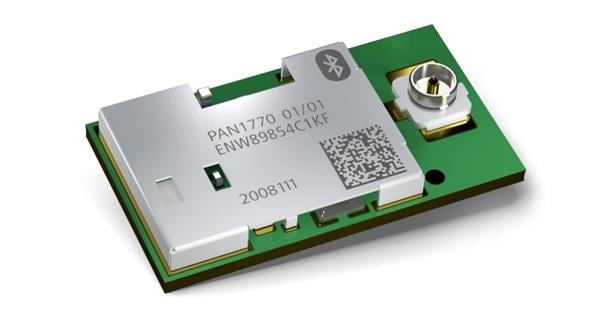

PANASONIC ENW-89854C2KF USB Adapter PAN1770 RF Transceiver with APPROTECTBT 5.1 External Antenna 2400 Mhz NRF52840

Core: ARM Cortex M4F

Width: 8.7 mm

Height: 2.05 mm

Length: 15.6 mm

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 15.6 mm x 8.7 mm x 2.05 mm

Output Power: 8 dBm

Interface Type: I2C, SPI, UART, USB

Moisture Sensitive: Yes

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 95 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
