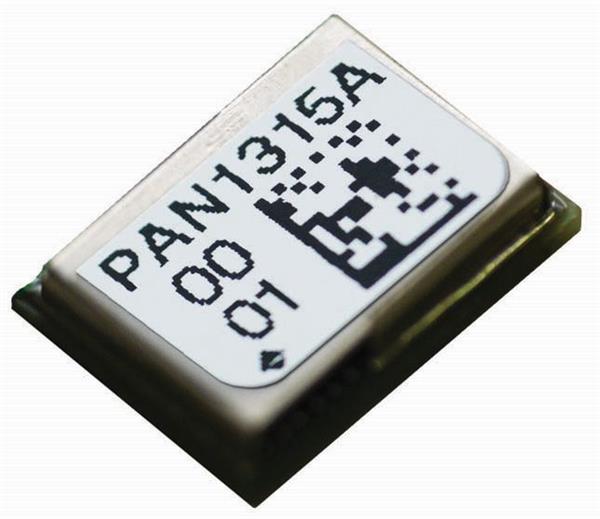

PANASONIC ENW-89829C2KF Bluetooth Modules PAN1315A CC2560A BTHCI Mod No Ant +85 (Texas Instruments CC2560)

Class: Class 1, Class 2

Width: 6.5 mm

Height: 1.7 mm

Length: 9 mm

Antenna: External

Protocol: Bluetooth 2.1 + EDR

Data Rate: 2.178 Mb/s

Frequency: 2.44 GHz

Sensitivity: - 93 dBm

Output Power: 10.5 dBm

Interface Type: I2C, UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM

Receiver Sensitivity: - 93 dBm

Supply Voltage - Max: 4.8 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: External

Operating Supply Voltage: 1.7 V to 4.8 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
