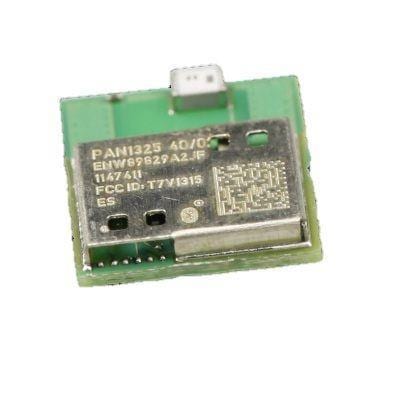

PANASONIC ENW-89829A3KF Bluetooth Modules PAN1325B CC2560B HCI Modules -40/+85C

Class: Class 1, Class 2

Width: 9 mm

Height: 1.8 mm

Length: 9.5 mm

Protocol: Bluetooth 2.1 + EDR

Data Rate: 2.178 Mb/s

Frequency: 2.4 GHz

Sensitivity: - 93 dBm

Unit Weight: 1.191 g

Output Power: 10 dBm

Interface Type: I2C, PCM, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM

Receiver Sensitivity: - 93 dBm

Supply Voltage - Max: 4.8 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 4.8 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
