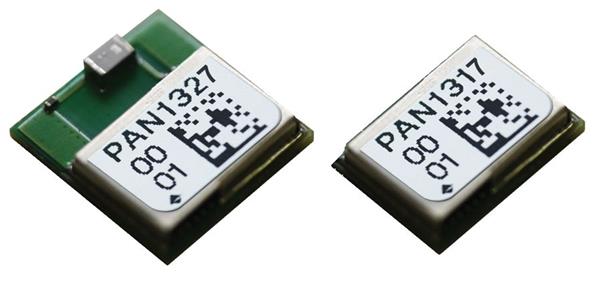

PANASONIC ENW-89827C2JF Bluetooth Modules PAN1317 CC2567 BT ANT+ HCI Mod No Antn

Class: Class 1, Class 2

Width: 6.5 mm

Height: 1.8 mm

Length: 9 mm

Antenna: Integrated

Protocol: BLE, Bluetooth 4.0 + EDR

Data Rate: 2.178 Mb/s

Frequency: 2.4 GHz

Sensitivity: - 93 dBm

Unit Weight: 400 g

Output Power: 10 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM

Receiver Sensitivity: - 93 dBm

Supply Voltage - Max: 4.8 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 4.8 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
