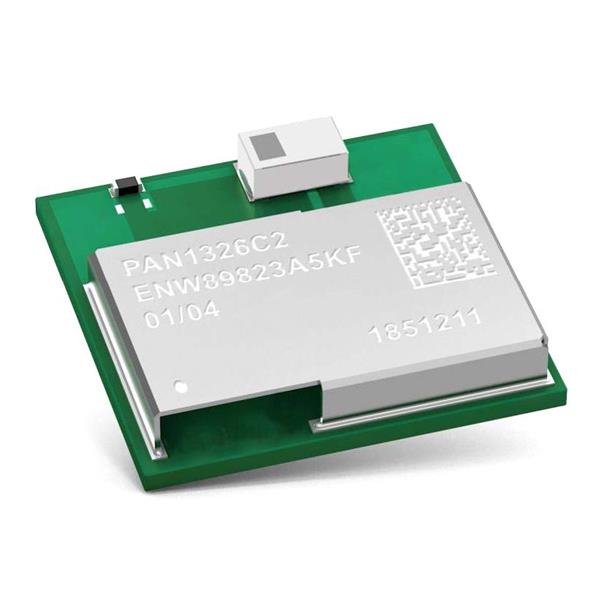

PANASONIC ENW-89823A5KF USB Adapter PAN1326C2, TI BasedBT Dual Mode HCI MOD (Texas Instruments CC2564C)

Width: 9 mm

Height: 1.8 mm

Length: 9.5 mm

Antenna: Chip

Protocol: BLE, Bluetooth 4.2

Frequency: 2.44 GHz

Shielding: Unshielded

Dimensions: 9 mm x 9.5 mm x 1.8 mm

Modulation: GFSK

Sensitivity: - 90 dBm

Unit Weight: 4.675 g

Output Power: 8 dBm

Interface Type: GPIO, PCM, UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Modulation Technique: GFSK

Receiver Sensitivity: - 90 dBm

Supply Voltage - Max: 4.8 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 4.8 V

Supply Current Receiving: 20 mA

Supply Current Transmitting: 40 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
