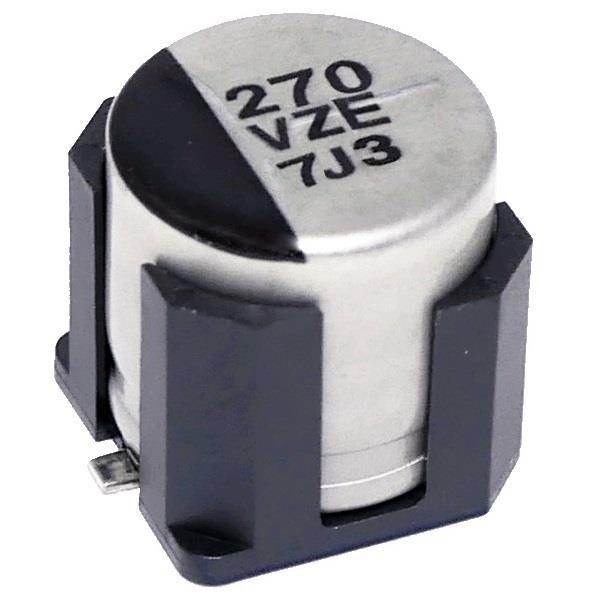

PANASONIC EEH-ZE1H680V Aluminum Hybrid Polymer Capacitors 50v 68uf 145degC Anti-Vibe AEC-Q200
ManufacturerPANASONIC(View more products from this manufacturer)
ModelEEH-ZE1H680V
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
ESR: 30 mOhms
Life: 2000 Hour
Length: 10.2 mm
Diameter: 8 mm
Tolerance: 20 %
Capacitance: 68 uF
Unit Weight: 2 g
Package Type: Vibration-Proof Can
Qualification: AEC-Q200
Ripple Current: 600 mA
Leakage Current: 3 uA
Termination Style: SMD/SMT
Voltage Rating DC: 50 VDC
Dissipation Factor DF: 0.1
Maximum Operating Temperature: + 145 C
Minimum Operating Temperature: - 55 C
