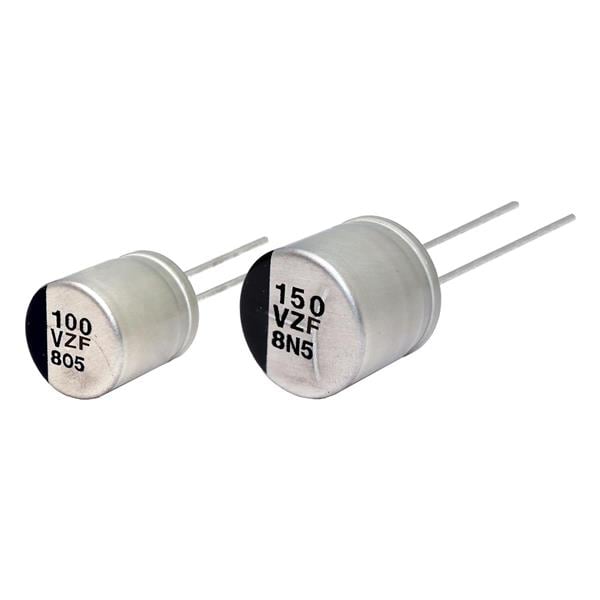

PANASONIC EEH-AZF1J560B Aluminum Hybrid Polymer Capacitors 63VDC 56uF 20% 30mOhm AEC-Q200
ManufacturerPANASONIC(View more products from this manufacturer)
ModelEEH-AZF1J560B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
ESR: 30 mOhms
Life: 1000 Hour
Length: 9.5 mm
Diameter: 10 mm
Tolerance: 20 %
Capacitance: 56 uF
Package Type: Can
Qualification: AEC-Q200
Ripple Current: 840 mA
Termination Style: Radial
Voltage Rating DC: 63 VDC
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
