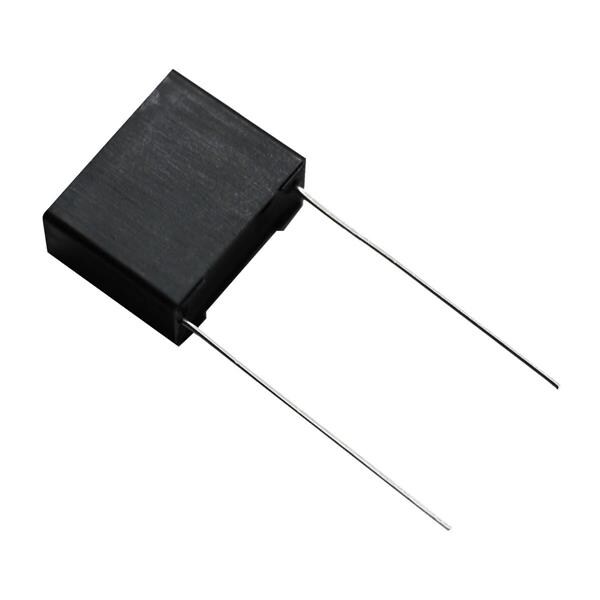

PANASONIC ECQ-UAAF225M Metallized Polypropylene Film Capacitor 2.2uF 275VAC 20% MPP L/S=27.5mm
ManufacturerPANASONIC(View more products from this manufacturer)
ModelECQ-UAAF225M
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 1000 Hour
Width: 24.5 mm
Height: 14.5 mm
Length: 31 mm
Tolerance: 20 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 2.2 uF
Unit Weight: 14 g
Lead Spacing: 27.5 mm
Lead Diameter: 0.8 mm
Qualification: AEC-Q200
Safety Rating: X2
Number of Pins: 2 Pin
Capacitance - nF: 2200 nF
Termination Style: Radial
Voltage Rating AC: 275 VAC
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
