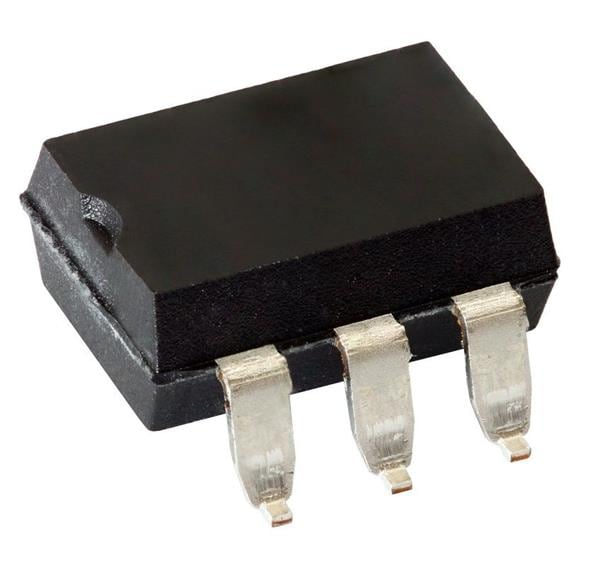

Panasonic Industrial Devices AQV251AX Controller 40v 500ma DIP Form A Norm-Open

Width: 6.4 mm (0.252 in)

Height: 3.6 mm (0.142 in)

Length: 8.8 mm (0.346 in)

Output Type: Photo MOSFET

Unit Weight: 745.688 mg

Contact Form: SPST (1 Form A)

Input Current: 50 mA

Mounting Style: PCB Mount

Isolation Voltage: 1.5 kV

Termination Style: SMD/SMT

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 500 mA

Load Voltage Rating: 40 VAC, 40 VDC

Control Voltage Range: 1.25 VDC

Pd - Power Dissipation: 410 mW

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Input to Output Isolation Method: Optocoupler
