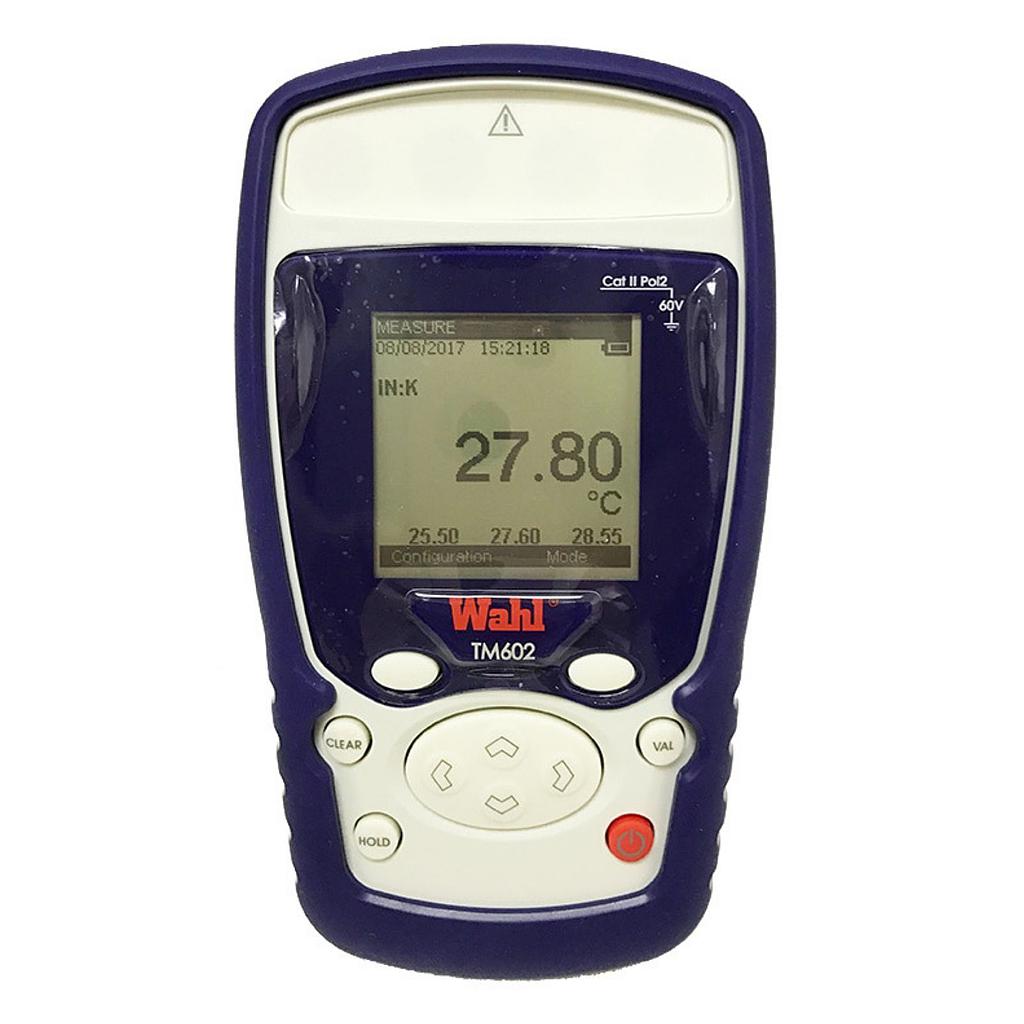

Palmer Wahl TM602 Digi-Stem® RTD Thermometer (Thermocouple measurement; 100 mV)

DC voltage

Range: 100 mV

Resolution: 1 µV

Accuracy / 1year: 0.020% RDG + 3µV

Measuring range: -10 mV / 100 mV

Compatible Thermocouple Types: K, T, J, E, R, S, B, U, L, C, N, Platinum, Mo, NiMo/NiCo

Size: 6.18 x 3.34 x 1.77 in (157 x 85 x 45 mm)

Weight: 10.8 ounces (306 g)

Display: 160 x 160 pixel liquid crystal graphical display

with backlite. Display of result as table of values or trend curve

Power supply: 4 AA batteries 1.5 V or rechargeable Ni-Mh

batteries with internal charger in option

Communication ports: USB

Storage capacity: 10.000 data with date and time into one or

several acquisition bursts

Reference range: 23°C ± 5°C (RH: 45 to 75 % w/o condensing)

Operating reference range: -10 to 50°C (RH: 20 to 80 % w/o condensing)

Limit operating range: -15°C to +55°C (RH: 10 to 80 % w/o condensing) (70% at 55°C)

Storage temperature limits: -30°C to +60°C

Maximum height: 0 to 2.200 m

IP protection: IP54
