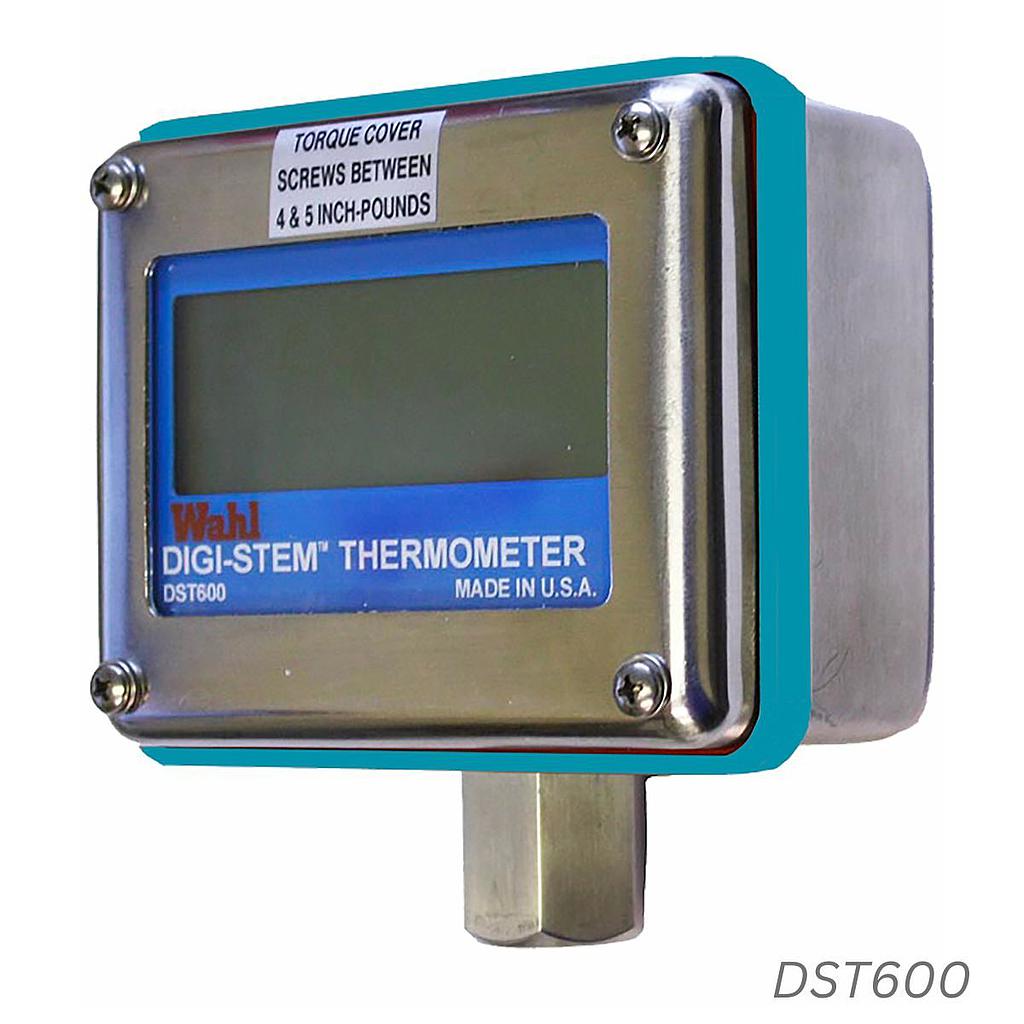

Palmer Wahl DST600 Digi-Stem® RTD Thermometers (-50°F to 500°F (-45.5°C to 260°C))

Panel Mount: Panel Mount option available on "P" models

Temperature Range: -50°F to 500°F (-45.5°C to 260°C)

Meter Accuracy: ± 0.1°F/C, over 1-year period (@ Tamb = 23°C ± 5°C)

Meter & Probe Accuracy : Temperature ≤ 300°F (148.8°C) = ± 0.3°F (± 0.2°C) & Temperature > 300°F (148.8°C) = ± 0.25% of reading

Display: 1.0” 4-digit LCD display with icons for °F, °C

Display Resolution: Standard display resolution: 0.1°F/°C

Sample/Display Rate: 2 Seconds

Ambient Operating Temperature: -40° to 158°F (-40° to 70°C)

Humidity: 10 to 100% RH, non-condensing

Ambient Temperature Coefficient: (From 23°C ± 5°C): Maximum of 0.003°/°C over Ambient Operating Temperature Range from 23°C ± 5°C

Probe Type / Sensor: Pt100 Class A

H Frame Material: Polycarbonate

Scale: °F and °C, switchable

Housing: DST600: Stainless Steel Enclosure with Polycarbonate H Frame and window, NEMA 4X rated

Dimensions: 5.3 in. W x 4.3 in. H x 2.7 in. D (13.5 cm W x 10.9 H x 6.9 cm D)

Weight: 2 lbs (1 kg)

Warranty: Two year warranty covers defects in materials and workmanship
