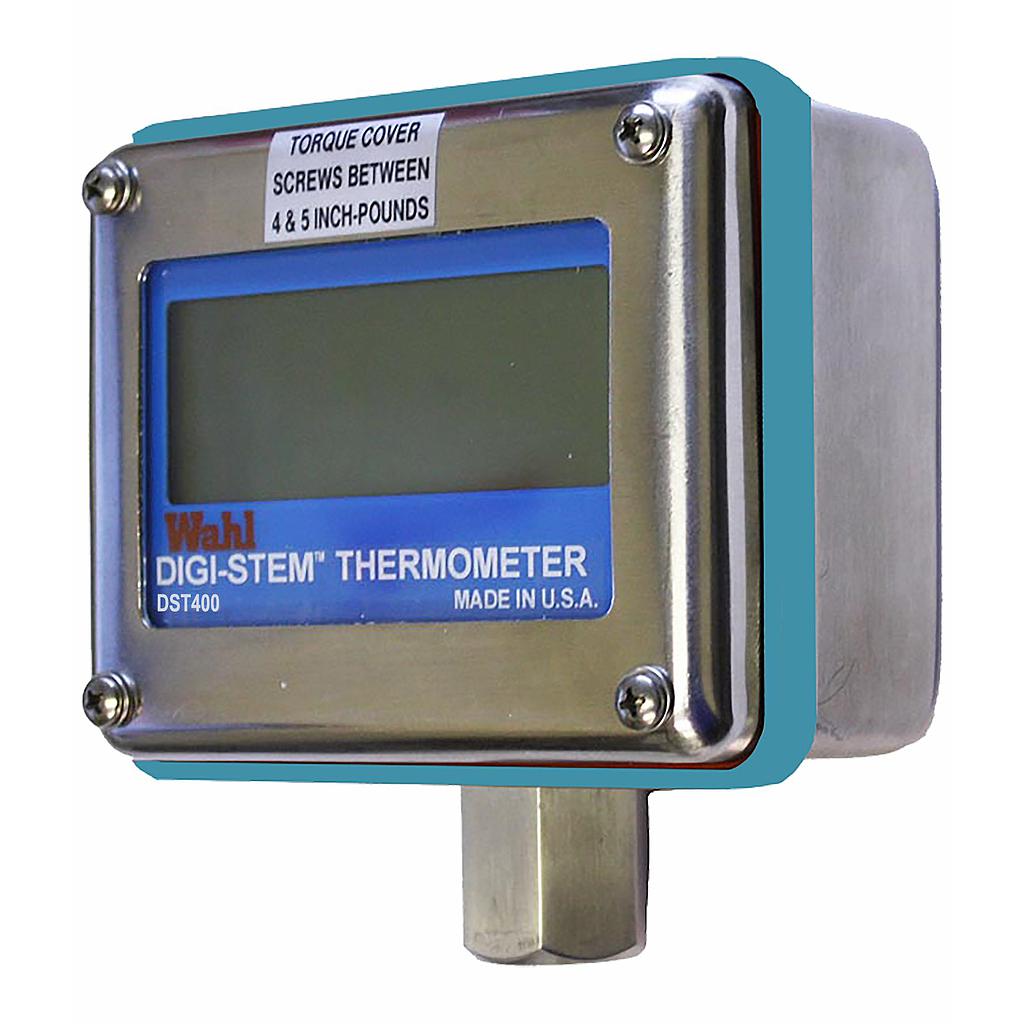

Palmer Wahl DST400E Digi-Stem® RTD Thermometer (-40° to 1832°F(-40° to 1000°C))

CASE STYLE: Stainless Steel Case Polycarbonate H Frame/Window

PROBES

Thermocouple Type: Type E

Probe Accuracy: Special Limits of Error

Sensor Lead Resistance: 1000 ohms Maximum

METER SPECIFICATIONS

Meter Range: -40° to 1832°F(-40° to 1000°C)

Meter Accuracy: < 1000 = ± 0.5°F, ± 0.3°C; > 1000 = ± 2°F, ± 1°C

System Accuracy: Greater of ± 0.4°F / 0.22°C or ± 0.5% of reading, over 1 year period (@ Tamb = 23°C)

Ambient Operating Environment: -40° to 158°F (-40° to 70°C)

Relative Humidity: 10% to 100% RH non-condensing

Vibration: Vibration - MIL STD 202G

DISPLAY SPECIFICATIONS

Display: 1.0 inch 4-digit LCD display, readable from 30 Feet

Display Icons: °F and °C, Low Battery, Error Warnings

Display Resolution: < 1000 = 0.1°; > 1000 = 1°

ENCLOSURE

Protection: NEMA 4X

Enclosure Dimensions / Weight: 5.3" W x 4.3" H x 2.7" D (135 x 109 x 69 mm) / Weight: 2.0 lbs. (1kg)
