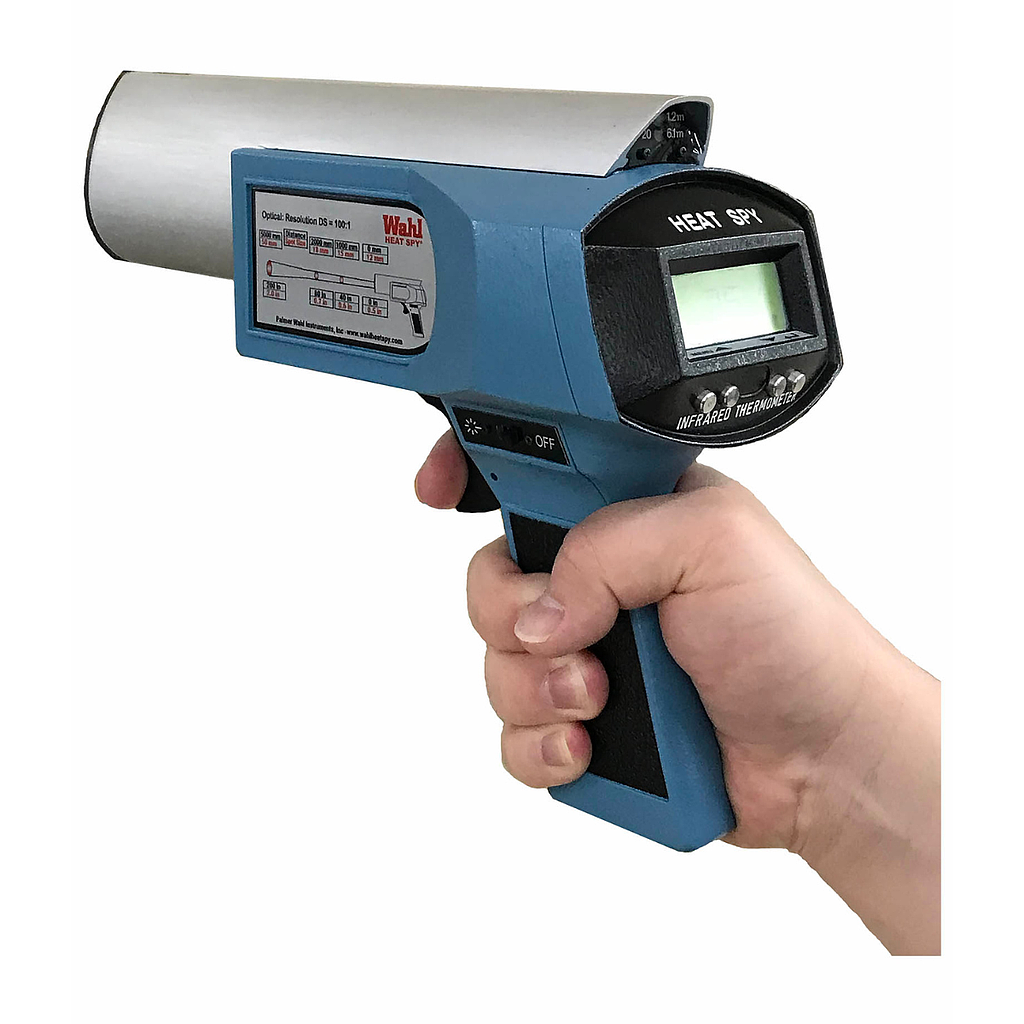

Palmer Wahl DHS40 3M Heat Spy® Handheld Infrared (Spectral Range: 2.4µm)

Spectral Range: 2.4µm

MEASURING SPECIFICATIONS

Optical: 100:1

Accuracy: ± 3°C + 0.1% of reading

Repeatability: ± 0.10% of reading

Response Time: 5 mS

Emissivity: 0.10 to 1.00

ELECTRONIC SPECIFICATIONS

Meter Display: LCD with Backlight, 128 X 64 DOT

Keyboard: 4 - Key - MENU, UP, DOWN, ENTER

Alarm: High or Low

SENSOR SPECIFICATIONS

Ambient Temperature: 0° to 50°C (32° to 122°F)

Storage Temperature: -20° to 70°C (-4° to 158°F)

POWER

Power Supply: 9 V DC Battery

Battery Life: 30 hours, approximately

ENCLOSURE

Housing Material: Aluminum

Housing Dimensions: 13 x 6 x 15.5 in (330.2 x 152.4 x 393.7mm)

Weight: 2.2 lbs. (0.99 kg)
