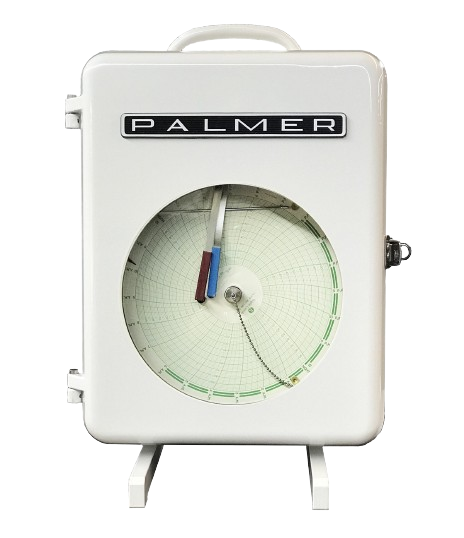

Palmer Wahl 382 Temperature Recorder (8 inch; Wall Mount)

Chart Recorder Type: Pressure & Temperature System

Chart Recorder Size: 8 inch Aluminum

Chart Recorder Mounting Style: Wall Mount

Arc Line: 6-3/8 inch

Case: Heavy die-cast aluminum

Available Case Colors: White Gloss Powder Coat, standard. Black Matte Powder Coat or Gray Gloss Powder Coat available upon request

Maximum Number of Total Systems: 3

Number of Pressure Systems: 1 or 2

Pressure Process Connection: Standard: 1/4 inch NPT for pressure ranges at or below 10,000 PSI

Number of Temperature Systems: 1 or 2

Mercury Filled °C Temperature Ranges:

0° to 60°C

0° to 100°C

0° to 120°C

0° to 150°C

0° to 200°C

0° to 250°C

0° to 300°C

0° to 350°C

0° to 400° C

Pen Colors: Standard: Red, Blue, Green. Optional: Black, Purple

Accuracy: ± 1/2 chart graduation for pressure measurement

Dimensions: W: 13-1/6 in. x H: 15-13/16 in. x D: 4-7/8 in. (W: 331.8 mm x H: 401.6 mm x D: 123.8 mm)
