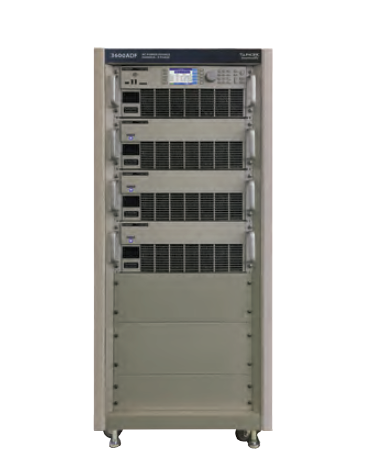

Pacificpower 3600ADF AC Power Source (60 kVA, 166.7 Arms)

Output:

Voltage:

- Output mode: AC

- Standard range: 0~300 Vac LN / 0~520 Vac LL

- Programing resolution: 0.01 V

- Accuracy: ± 0.25% F.S.

- Output waveform: Sine

- DC offset: < 20 mV

- Output noise: < 150 mV RMS

- Output isolation : 550Vac

Frequency

- Standard range: 45.00 ~ 500.0 Hz

- Programing resolution: 0.01 Hz

- Accuracy: ± 0.01%

Current Limit:

Crest factor: 166.7 Arms

- Programming resolution:0.01 Arms

- Accuracy: ± 0.5% F.S.

Measurements (Range, Resolution, Accuracy):

- Voltage: 0~350VLN/ 0~600VLL, 0.01V, ± 0.25% F.S.

- Curent: 1.00 ~ 5.00/ 0.01/ ± 2.0% F.S.

Phase Mode: 2 & 3 Phase

Rated Output: 60 kVA/kW

Dimensions Per 15kVA chassis: HxWxD: 7"x17"x25" / 178x432x635 mm

Weight: 112 lbs / 50.4 kg

Form Factor: 28U Cabinet or KIT
