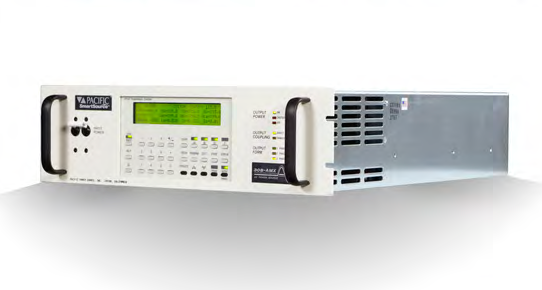

Pacificpower 308AMXT Programmable Linear AC Power Source (750VA, 338/600L-N/L-L)

- Rated Power (VA): 750

- Output Form: 1Ø/2Ø; 3Ø

- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l):

Direct: 135/270; 135/234

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 202/404; 270/540; 338/600

3Ø 202/350; 270/468; 338/585

- Output Current (1Ø/2Ø; 3Ø) (Arms):

Direct: 6/2; 2/Ø

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 4/1.3; 3/1; 2.4/0.8

3Ø 1.3/Ø; 1/Ø; 0.8/Ø

- Frequency Range:

Direct: 20~5000

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~5000; 45~5000; 45~5000

- Input Power: 1Ø 47-63Hz

- Unit Height (In/mm/U): 5.25/133/3U

- Unit Weight (Lbs/Kg): 75/34

- Output Frequency:

20~5,000 Hz Direct Coupled

45~5,000 Hz Transformer Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

Direct Coupled Ranges:

0.25% 20 ~ 2,000 Hz.

0.50% 2,000 ~ 5,000 Hz.

- Output Distortion:

0.1% THDAVG 45 ~ 1,000 Hz

0.25% THDAVG 20 ~ 5,000 Hz

- Ripple and Noise: -72dB

- Response Time: 5 μsec typ
