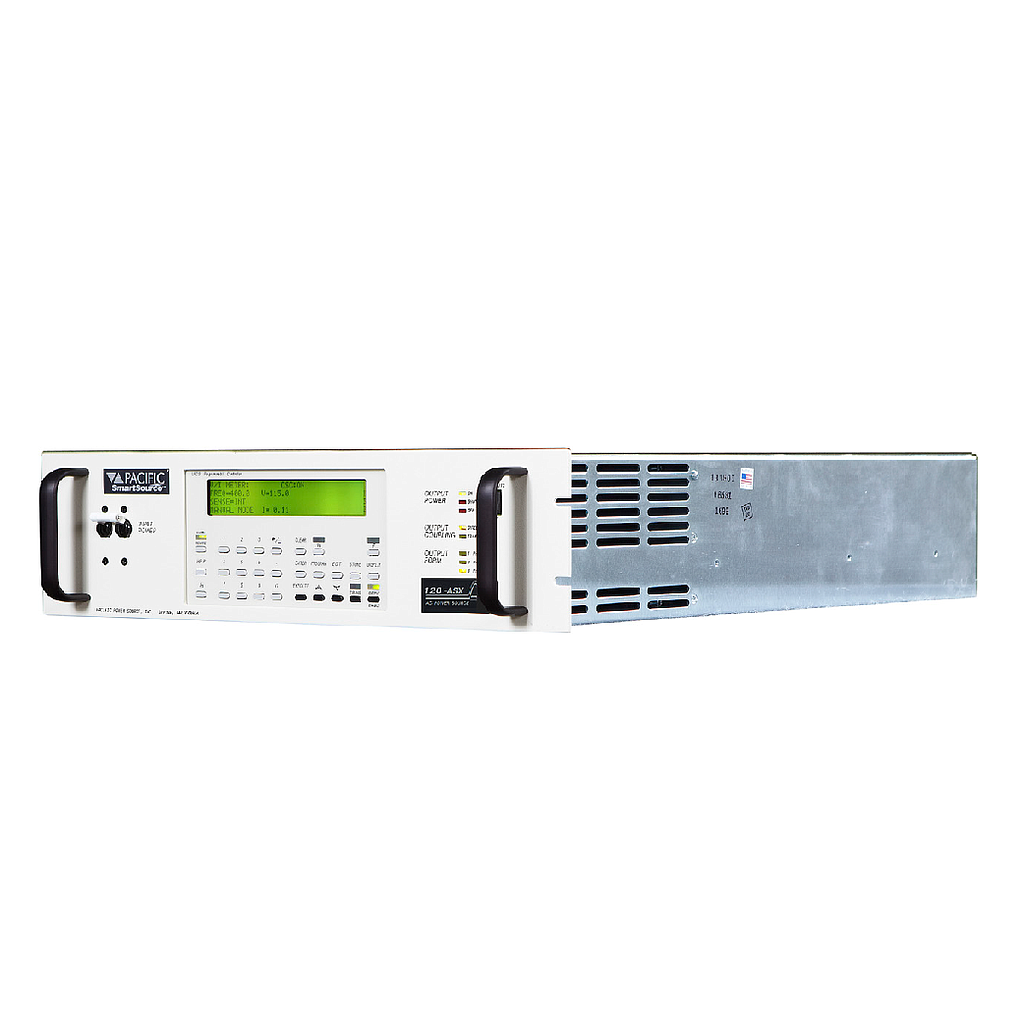

Pacificpower 120ASX High Performance AC Power Source (2000VA, 20/14Arms)

- Rated Power (VA): 2000

- Coupling Mode: Direct

- Form: 1Ø/2Ø

- Output Voltage Max (1Ø/2Ø) (l-n/l-l): 150/300

- Current (1Ø/2Ø) (Arms): 20/14

- Frequency Range: 15~1200

- Input Power: 1Ø

- Unit Height (In/mm/U): 5.25/133/3U

- Unit Weight (Lbs/Kg): 75 /34

- Output Frequency:

15~1200 Hz Direct Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

Direct Coupled:

0.25% 15 to 400 Hz.,

0.50% 400 to 1,200 Hz.

Improves to <0.1% with external sense and CSC enabled

- Output Distortion:

0.25% THDAVG 15~200 Hz

1.25% THDAVG 200~1200 Hz

- Ripple and Noise: -66dB

- Response Time: 60 μsec typical
