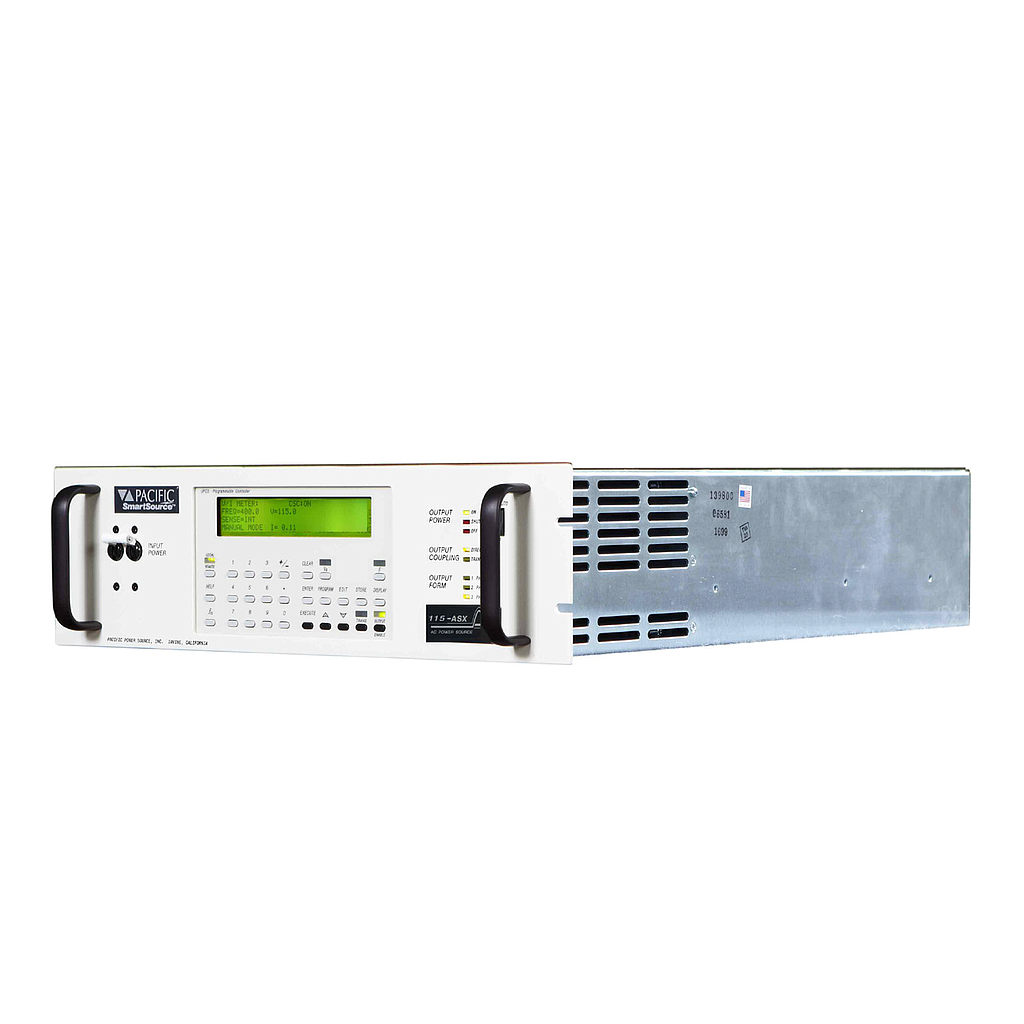

Pacificpower 115ASXT High Performance AC Power Source (1500VA, 6.4Arms)

- Rated Power (VA): 1500

- Output Form: 1Ø

- Output Voltage Max (l-n/l-l):

Direct: 132

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 198; 264; 330

- Current (Arms):

Direct: 16

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 10.7; 8; 6.4

- Frequency Range:

Direct: 15~1200

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~1200; 45~1200; 45~1200

- Input Power: 1Ø

- Unit Height (In/mm/U): 5.25/133/3U

- Unit Weight (Lbs/Kg): 95/43

- Output Frequency:

15~1200 Hz Direct Coupled

45~1200 Hz Transformer Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation (Direct coupled):

0.25% 15 to 400 Hz.,

0.50% 400 to 1,200 Hz.

2 to 5% depending on ratio

Improves to less than 0.1% with external sense and CSC enabled

- Output Distortion:

0.25% THDAVG 15~200 Hz

1.25% THDAVG 200~1200 Hz

- Ripple and Noise: -66dB

- Response Time: 60 msec typ.
