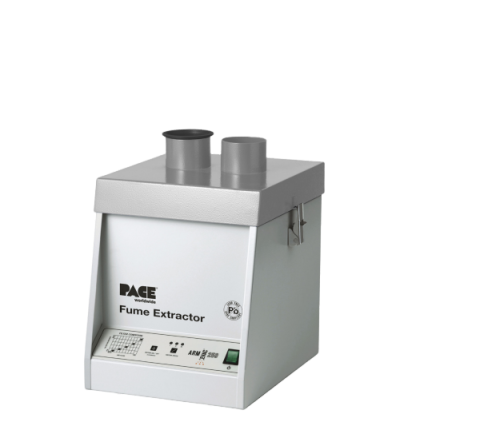

PACEWORLDWIDE Arm-Evac 250E Fume extraction systems (230 VAC, 50 Hz)

Power requirements: 230 VAC, 50 V

Dimensions: 393mm (15.4") H x 282mm (11.1") W x 365mm (14.3") D

Weight / Noise Level*: 14 Kg (31 lbs) / 58 dBA

Number of Inlets: Two 75mm (3")

Flow Rate* General Purpose Filter: Single Inlet: 288m3/h (170 cfm); Dual Inlet: 170m3/h (100 cfm) per inlet

Flow Rate* HEPA Filter: Single Inlet: 255m3/h (150 cfm); Dual Inlet: 135m3/h (80 cfm) per inlet

Number of Collection Accessories: Up to four 45mm (1.75"), Up to four 75mm (3")

Maximum Duct Run: 5m (16') per inlet

System Options: Silencer / Mobile Cart

Standard Primary Filter: General Purpose Combo Filter

Filtration Options: Pre-Filter, General Purpose Combo Filter, HEPA Combo Filter, Adhesive Combo Filter
