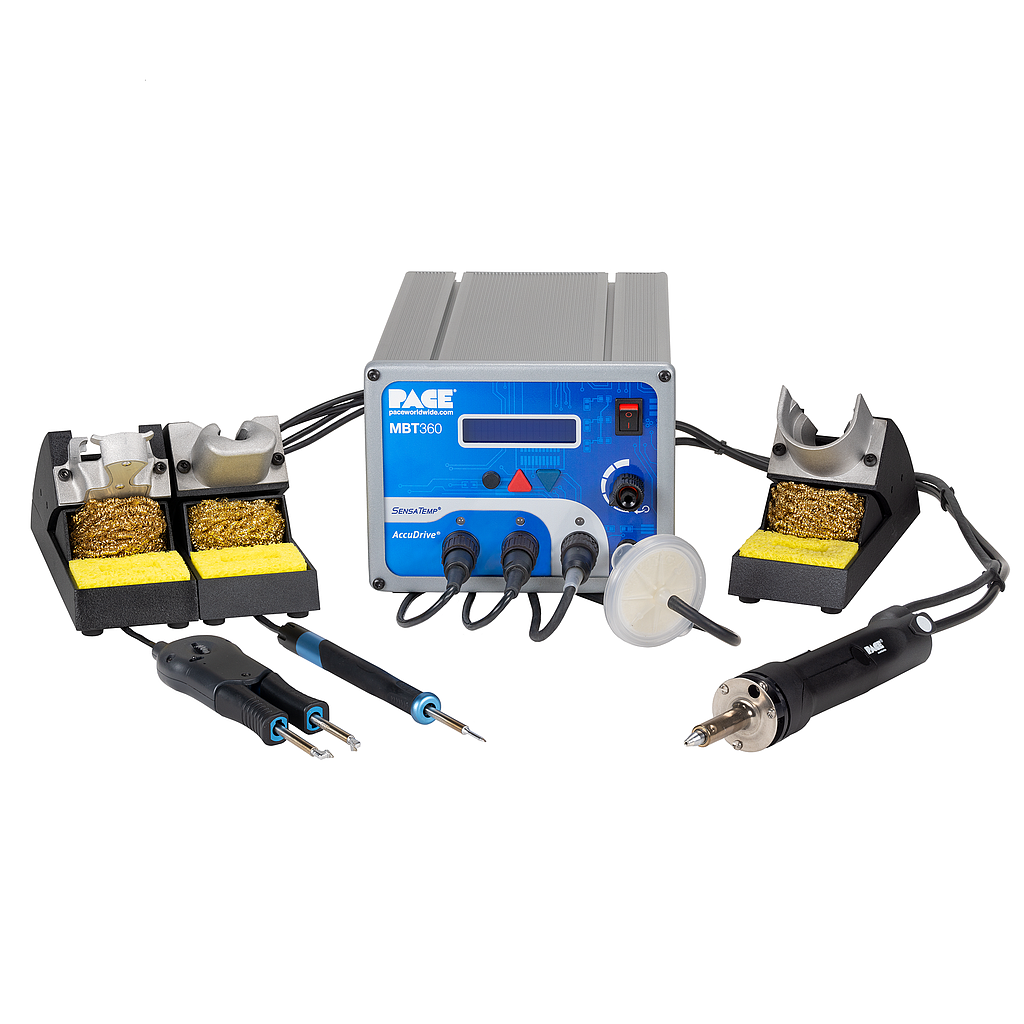

PACEWORLDWIDE MBT360 Multi-Channel Soldering and Rework System

Kit with 3 Handpieces: TD-200, MT-200 & SX-100

Power Requirements: 115 VAC, 60 Hz (240 watts maximum)

Power Ports: 2 AccuDrive®, 1 SensaTemp®

Self-Contained Internal Pump: Snap-Vac® Vacuum/Adjustable Pressure Capability

Dimensions: 135mm (5.3”) H X 165mm (6.5”) W X 260mm (9.25”) D

Weight: 5 Kgs (11 lbs.)

Tip-to-Ground Resistance: < 2 Ohms

Temperature Stabililty: ± 1.1°C (2°F)

Temperature Accuracy: Meets or exceeds ANSI J Std 001

Set Temperature Range:

AccuDrive® 177-454°C (350-850°F)

SensaTemp® 37-482°C (100-900°F)
