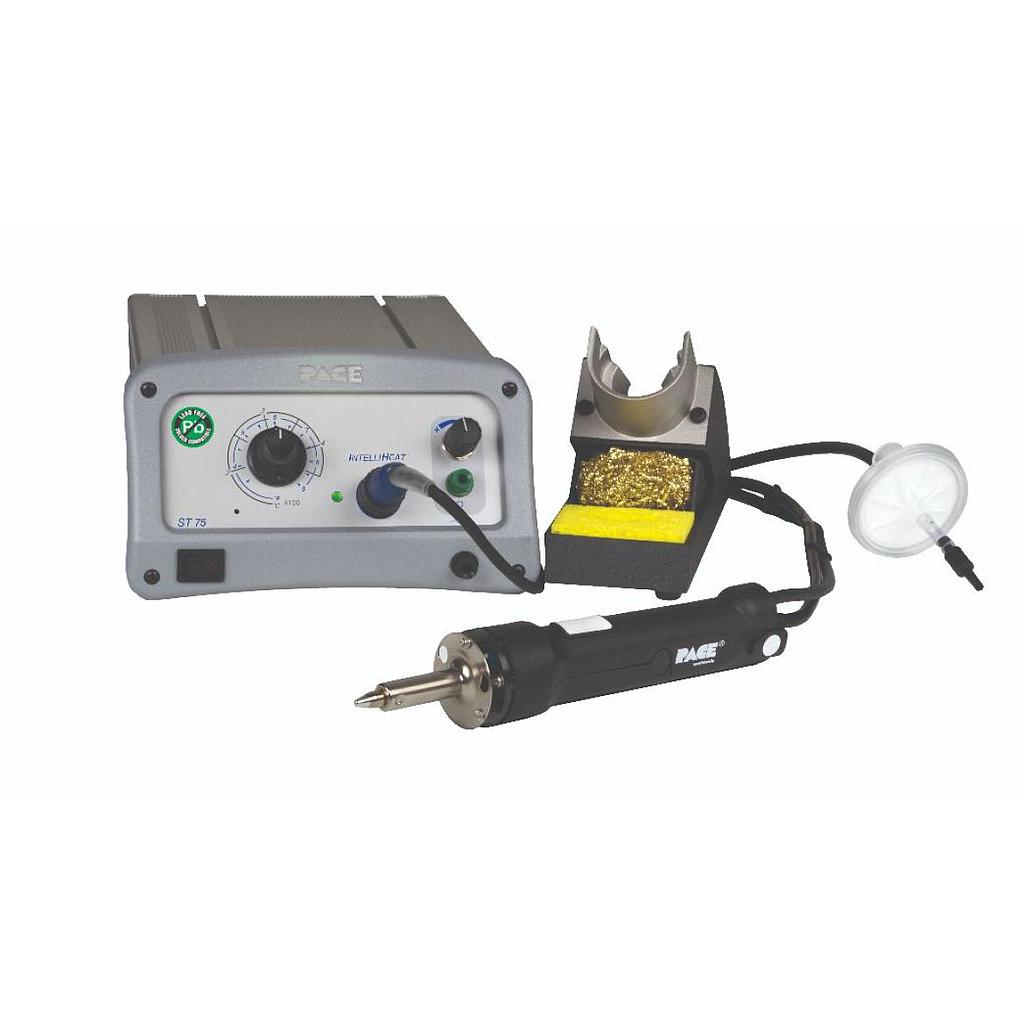

PACEWORLDWIDE ST 75E Desoldering System with SX-100 Sodr-X-Tractor (Tích hợp bơm hút trong máy)

 1.Lựa chọn đầu TIP mua thêm :

• SX-100 Desoldering Tips

2.Lựa chọn tay cầm theo ứng dụng khác mua thêm

PS-90 Universal Soldering Iron (IntelliHeat)

TT-65 ThermoTweez Kit with Tip & Tool Stand (IntelliHeat)

3. Một số thông số tham khảo

 Power Requirements:  197-253 VAC, 50/60Hz, 120 Watts Max

Control: Dial

Control Technology:  IntelliHeat

Tip to Ground Resistance:  2 ohms or less

Temperature Accuracy:  Meets or exceeds ANSI-J-STD

Absolute Temperature Stability:  ° 1.1°C (° 2 °F) at idle tip temp.

Temperature Range:  Tip Heater Compatible Handpieces = 205° to 454°C (400° to 850°F) Nominal
SensaTemp Compatible Handpieces = 176°(Dial)or 37°C (Digital Display) to 482°C (350°(dial)or 100° (Digital Display) to 900°F) Nominal

 System Can be Calibrated:  Yes

 Vacuum/Pressure Source Type:  Self Contained Pump

 Vacuum Rise Time:  150 ms Average

 Vacuum (Nominal):  20 in Hg Max

Flow Control Valve:  High Precision Needle Valve

 Pressure (Nominal)18 p.s.i.

 Air Flow (Nominal)8 slpm Max

Manuals

ST 30, ST 50, ST 65, ST 75, ST115 Intelliheat Manual English

ST 30, ST 50, ST 65, ST 75, ST115 Intelliheat Manual Hebrew

Brochures

Product Overview, English - NEW 2013

Product Overview, French - NEW 2013

Product Overview, Portuguese - NEW 2013

Product Overview, Spanish - NEW 2013

      Solder, Desolder & Rework Catalog - NEW 2013
