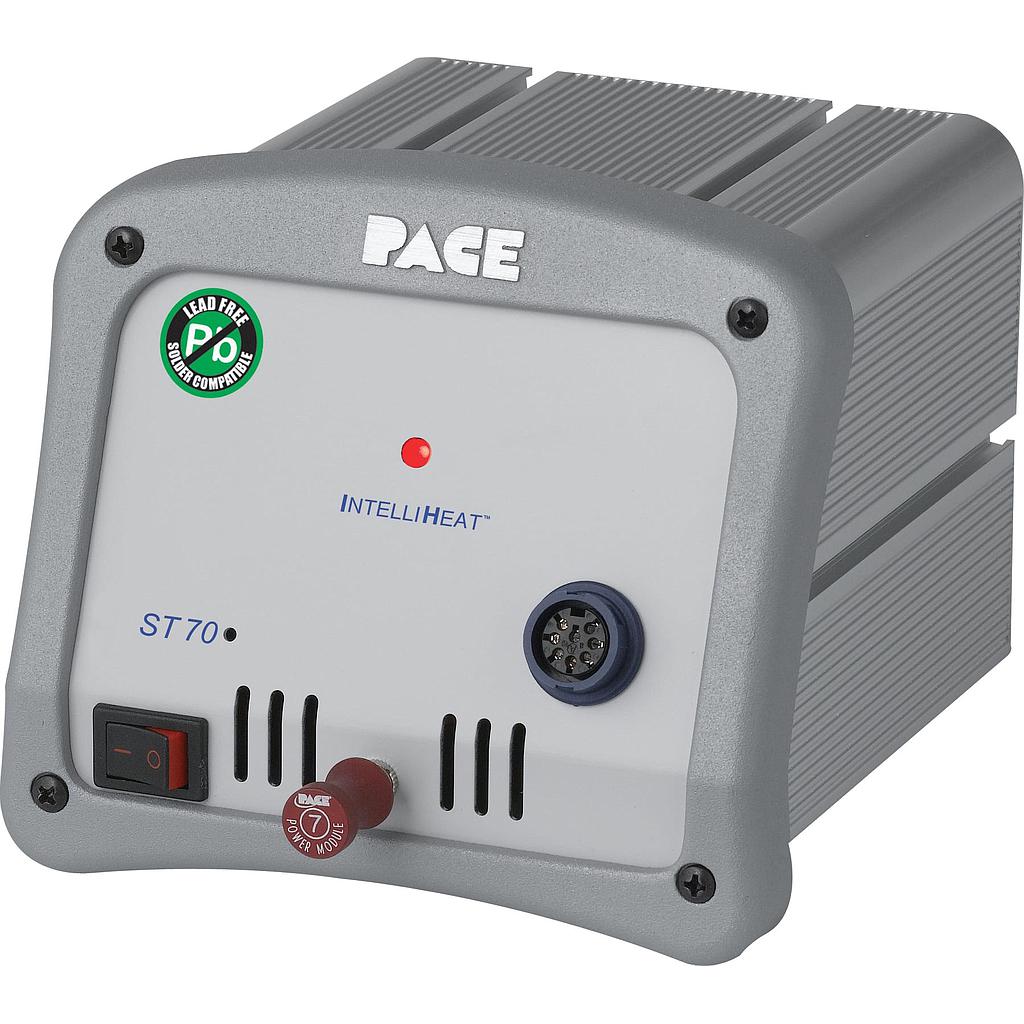

PACEWORLDWIDE ST 70 Solderer with TD-100 Soldering Iron (with TD-100 Soldering Iron)

The ST 70 is a single channel system that
is controlled by POWER MODULES™
and comes with the Thermo-Drive
Soldering Iron (TD-100). The system can
also be purchased as a Power Source
only and combined with any of 4 optional
IntelliHeat™ handpieces.)
Power Requirements: 197-253 VAC, 50/60Hz, 90 Watts Max
Control TechnologyIntelliHeat
Tip to Ground Resistance: 2 ohms or less
Temperature Accuracy: Meets or exceeds ANSI-J-STD
Absolute Temperature Stability: ° 1.1°C (° 2 °F) at idle tip temp.
Temperature RangeTip Heater Compatible Handpieces = 205°
to 454°C (400° to 850°F) Nominal
Products included:
ST 70 Power Supply
TD-100 Thermodrive Iron Kit with Tip & Tool Stand (IntelliHeat)
TIP Soldering (not included in the machine)

 1.optional IntelliHeat™ handpieces:

1. TD-100 ThermoDrive Iron (IntelliHeat)
2. MT-100 MiniTweez Handpiece (IntelliHeat)
3. TD-100 Thermodrive Iron Kit with Tip & Tool Stand (IntelliHeat)
4. PS-90 Universal Soldering Iron Kit with Tip & Tool Stand (IntelliHeat)
5. TT-65 ThermoTweez Kit with Tip & Tool Stand (IntelliHeat)
6. PS-90 Universal Soldering Iron (IntelliHeat)
7. TT-65 ThermoTweez (IntelliHeat)
8. TD-100 Thermodrive Iron Kit with ISB (IntelliHeat)
9. MT-100 MiniTweez Kit with Tip & Tool Stand (IntelliHeat)

2.optional TIP:

        TD-100 Tips
