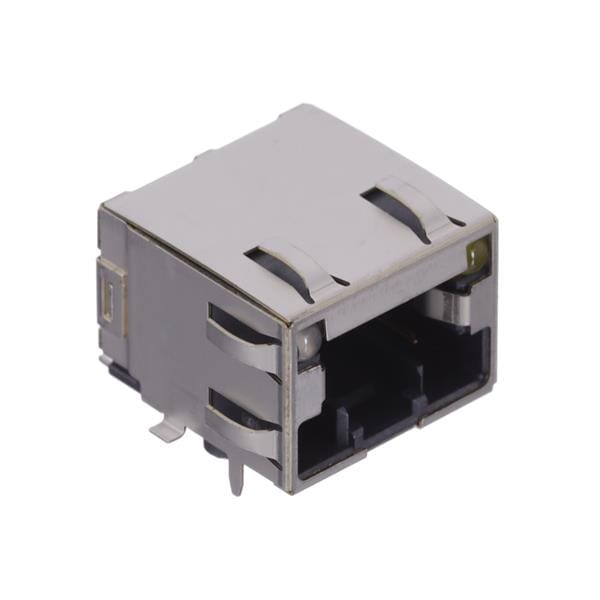

P&B 2178126-1 Modular Mod Jack Cldspltr SMT shlded

Color: Black

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: 10/100/1000 Base-T

Unit Weight: 500 g

Configuration: 1x1

Tab Direction: Tab Up

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: PCB Mount

Voltage Rating: 150 VAC, 50 VDC

Contact Plating: Gold

LED L / R Color: Green, Orange / Yellow

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: SMD/SMT

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position

Performance Category: Cat 5e

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
