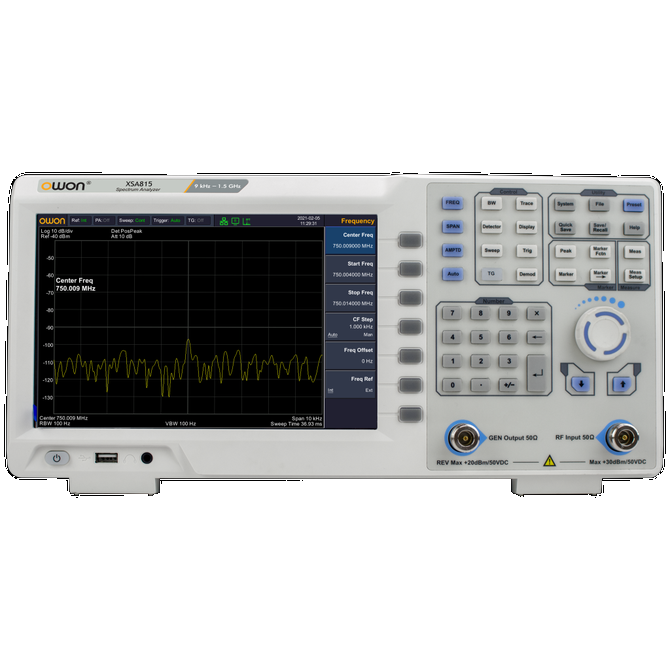

OWON XSA815 Spectrum Analyzer (9 kHz – 1.5 GHz)

Frequency Range: 9 kHz – 1.5 GHz

Frequency Resolution: 1 Hz

Frequency Span:

Span Range: 0 Hz, 100 Hz – max frequency of instrument

Span Uncertainty: ± span / (sweep points−1)

SSB Phase Noise (20–30°C, fc=1 GHz): <−80 dBc/Hz @10 kHz • <−100 dBc/Hz @100 kHz • <−115 dBc/Hz @1 MHz

Resolution Bandwidth (−3 dB): 1 Hz – 1 MHz (1-3-5-10 sequence)

RBW Accuracy: <5% (typical)

Resolution Filter Shape Factor (60 dB:3 dB): <5 typical

Video Bandwidth (−3 dB): 10 Hz – 1 MHz (1-3-5-10 sequence)

Amplitude Measurement Range:

DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off

DANL to +20 dBm, fc ≥ 10 MHz, Preamp Off

Reference Level: −80 dBm to +30 dBm, 0.01 dB step

Preamp: 20 dB nominal (100 kHz – 1.5 GHz)

Input Attenuator: 0 to 40 dB, 1 dB step

Preamp Off

9 kHz–1 MHz: −95 dBm (typical), <−88 dBm

1–500 MHz: −140 dBm (typical), <−130 dBm

500 MHz to 1.5 GHz: -138 dBm (Typical), <-128 dBm

Preamp On

100 kHz–1 MHz: −135 dBm (typical), <−128 dBm

1–500 MHz: −160 dBm (typical), <−150 dBm

500 MHz to 1.5 GHz: -158 dBm (Typical), <-148 dBm
