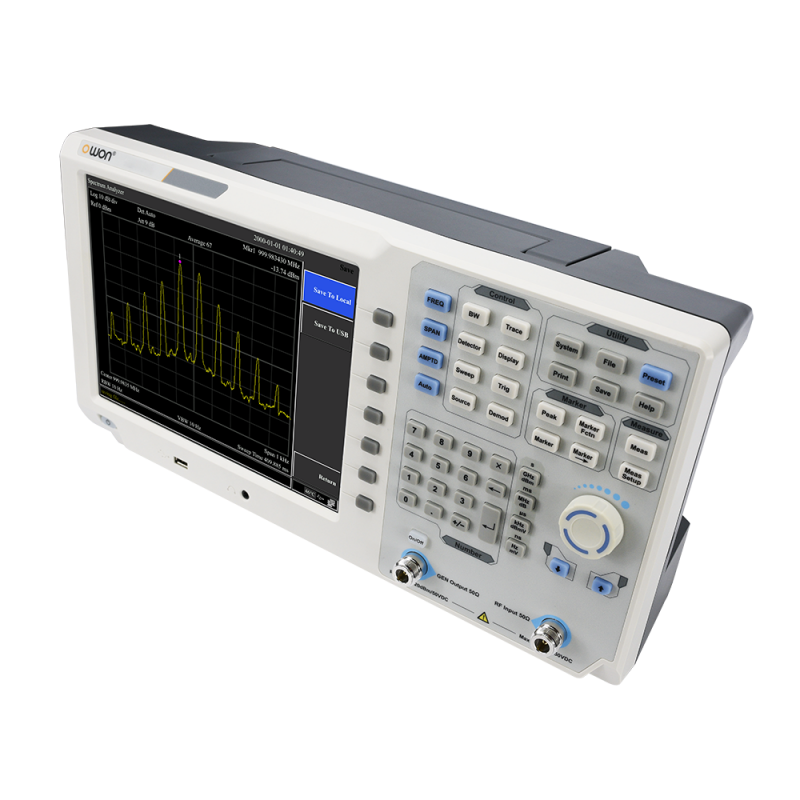

OWON XSA1015TG Spectrum Analyzer

Frequency Range 9kHz-1.5 GHz
Resolution 1Hz
Frequency span
Range 0 Hz，100 Hz to maximum frequency of device
Accuracy ± span /（swept points -1）
Internal reference
Reference frequency 10.000000 MHz
Temperature stability <2.5ppm （15℃ to 35℃）
Aging rate <1ppm/year
Bandwidth
Resolution bandwidth (-3 dB) 10Hz to 500kHz（in 1 to 10 sequence）， 1MHz，3MHz
Video bandwidth (-3 dB) 10Hz to 3MHz
Phase noise
20 ℃ ~30 ℃，fc=1 GHz
Phase noise <-85 dBc/Hz @10 kHz offset
<-100 dBc/Hz @100 kHz offset
<-110 dBc/Hz @1 MHz offset
level unit dBm,dBuW,dBpW,dBmV,dBuV, W,V
Points 201~1001
Number of traces 5
Detectors Positive-peak, negative-peak, sample, normal, RMS
Trace functions Clear write, Max Hold, Min Hold, View, Blank, Average
Display TFT LCD，10.4 inches
Weight 5.0 kg
Dimension (W x H x D) 321 x 221 x 115 (mm)
