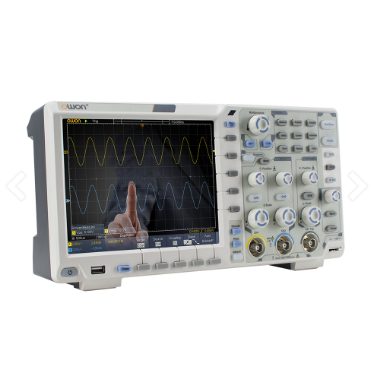

OWON XDS2102 Digital Oscilloscope (100MHz, 1GS/s, 2CH+1 (external))

Bandwidth: 100MHz

Sample Rate: 1GS/s

Record length: 40M or 80M( optional )

Waveform Refresh Rate: 75,000 wfms/s

Horizontal Scale (s/div): 2ns/div - 1000s, step by 1 - 2 - 5

Rise Time (at input, typical): ≤3.5ns

Channel: 2 + 1 (external)

Display: 8" color, 800 x 600 pixels LCD (optional touch screen LCD)

Channel Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage: 1MΩ ≤ 300Vrms

DC Accuracy: 1mV:±4%; ≥2mV:±3%

Probe Attenuation Factor: 0.001X - 1000X, step by 1 - 2 - 5

LF Respond (AC, -3dB): ≥10Hz (at input, AC coupling, -3dB)

Interpolation: sin(x) / x

Input Coupling: DC, AC, and GND

Vertical Sensitivity: 1mV/div - 10V/div (at input)

Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,and CAN

Bus Decoding: I2C, SPI, RS232, and CAN

Trigger Mode: Auto, Normal, and Single

Vertical Range: ±2V(1 mV/div - 100mV/div); ±200V (200 mV/div -10 V/div)

Line / Field Frequency (video): NTSC, PAL and SECAM standard

Cursor Measurement: △V, and △T between cursors, △V and △T between cursors, and auto-cursors

Automatic Measurement: Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count

Waveform Math: ＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)

Waveform Storage: 100 waveforms

Lissajou's Figure

Bandwidth: full bandwidth

Phase Difference: ±3 degrees

Communication Interface: USB Host, USB Device, Trig Out (P/F), LAN, and VGA

Frequency Counter: available

Power Supply: 100V - 240V AC, 50/60Hz, CAT II
