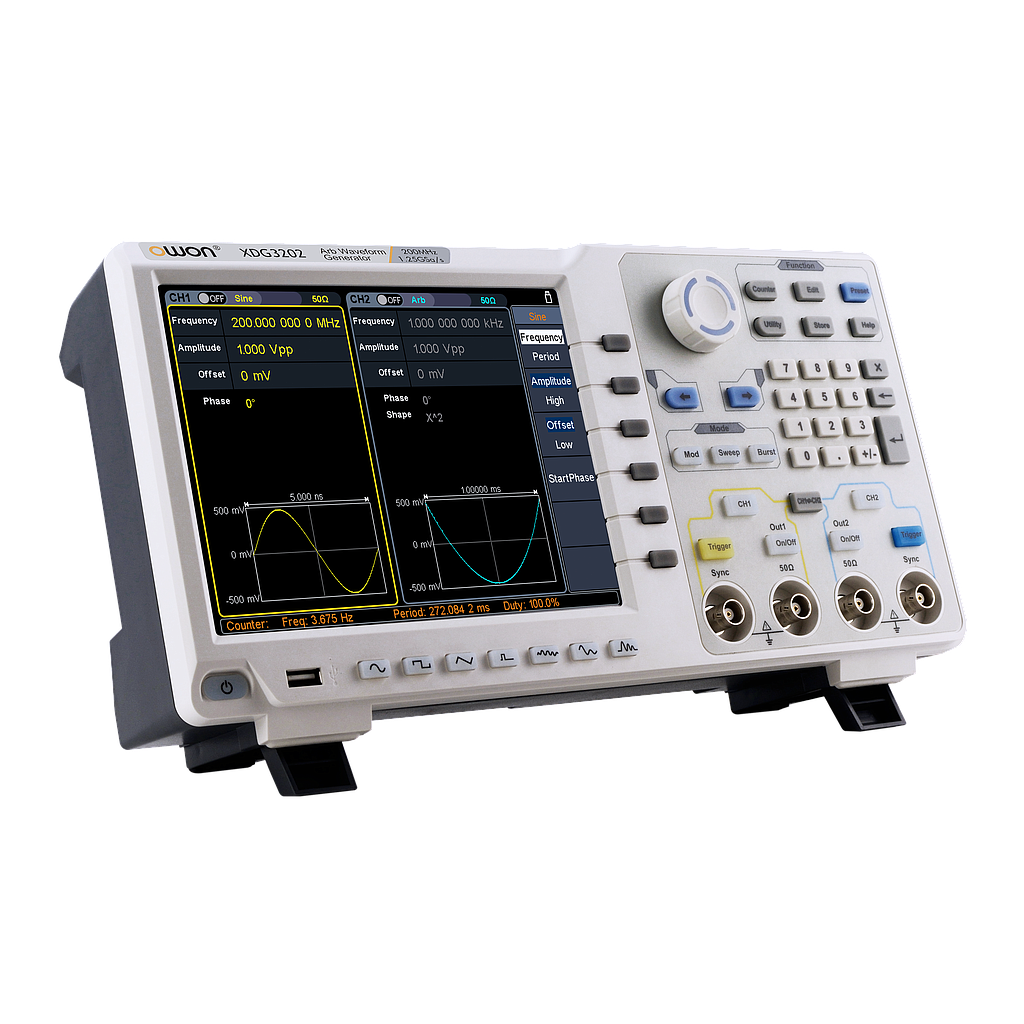

Model XDG3202T
Manufacture: Owon
Warranty: 12 month
Channel2
Frequency Output 200MHz
Sample Rate1.25GSa/s
Vertical Resolution14 bits
Standard Waveformsine, square, pulse, ramp, noise, and harmonic
Arbitrary Waveformexponential rise, exponential fall, sin(x)/x, step wave, and others,
total 150 built-in waveforms, and user-defined arbitrary waveform
Sine1μHz - 200MHz
Square1μHz - 50MHz
Pulse1μHz - 25MHz
Ramp1μHz - 5MHz
Harmonic 1μHz - 100MHz
Noise120MHz (-3dB, typical)
Arbitrary Waveform built-in waveform: 1uHz - 15MHz
user-defined waveform: 1uHz - 50MHz
Accuracy ±1ppm, 0°C - 40°C
Amplitude
into 50Ω load1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz)
1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz)
into open circuit or high-Z2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz);
2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz)
Frequency Counter
Functionfrequency period, +width, -width, +duty, and -duty
Frequency Range100mHz - 200MHz
Frequency Resolution7 digits
Input / Output
Display8”800 x 600 pixels touch screen LCD
Typefrequency counter, external modulation input,
external trigger input,
external reference clock input / output
Communication InterfaceUSB Host, USB Device, and LAN
Dimension (W×H×D)340 x 177 x 90 (mm)
Weight (without package)2.50kg
