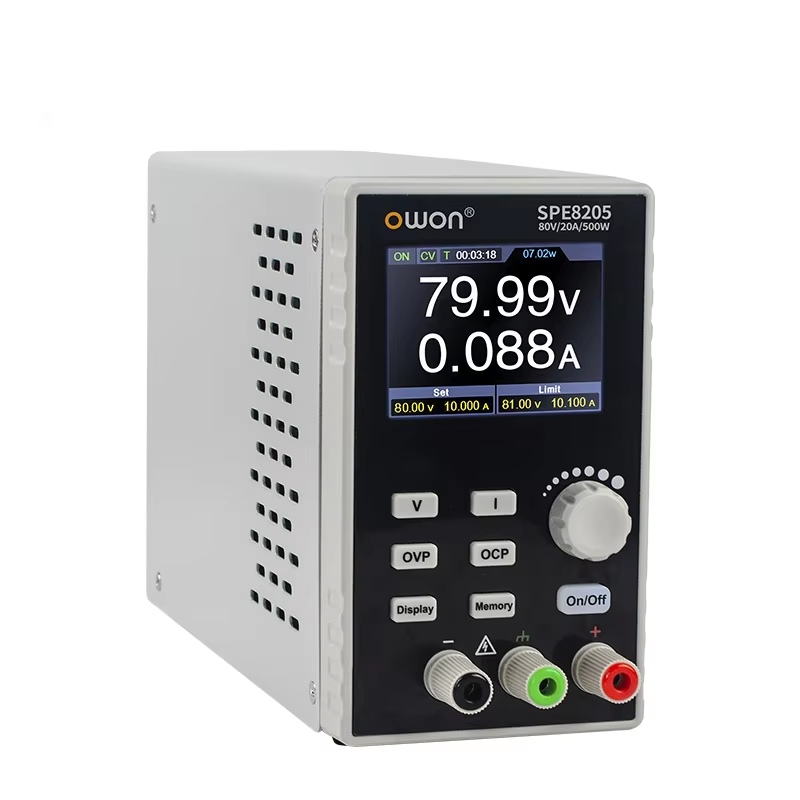

OWON SPE8205 Single channel programmable power supply (0-80V, 20A, 500W)

Output voltage: 0-80V

Output current: 20A

Max output power: 500W

OVP: 85V

OCP: 21A

OTP: 85℃

Load Regulation: ≤20mV(voltage)/ ≤10mA(current)

Power Resolution: ≤20mV(voltage)/ ≤10mA(current)

Setting Resolution: 10mV/ 1mA

Readback Resolution: 10mV/ 1mA

Setting accuracy (25℃±5℃): ≤0.1% + 20mV(voltage)/ ≤0.05% + 20mA(current)

Readback accuracy (25℃±5℃): ≤0.1% + 20mV(voltage)/ ≤0.05% + 20mA(current)

Ripple/Noise (20Hz-20MHz: ≤50mVp-p; ≤15mAp-p

Output Temperature Coefficient (0℃-40℃): 100ppm/℃ / 200ppm/℃

Readback Temperature Coefficient: 100ppm/℃ / 200ppm/℃

Response Time (50%-100% rated load): ≤5.0ms

Storage: 4 groups of data

Display: 2.8inch LCD (IPS)

Dimension: 82mm(W)x142mm(H)x226mm(D)

Weight: Approx. 1.8kg

Accessories: Power supply main device, Power Cord, Quick Guide, USB Cable
