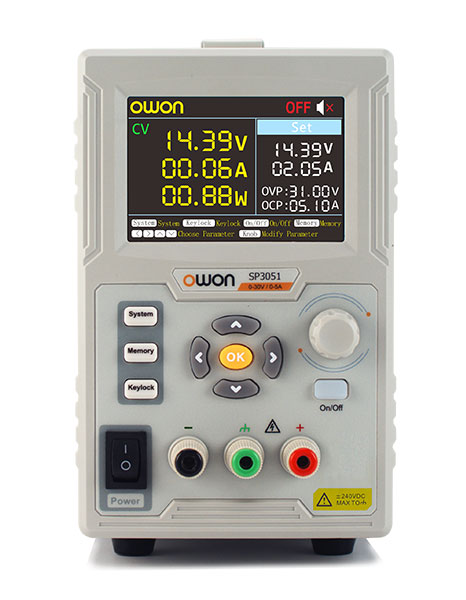

OWON SP3051 DC Power Supply (0 - 30V / 0 - 5A)

Manufacturer: OWON

Model: SP3051

Origin: China

Warranty: 12 months

Channel: Single Channel Output

Total Output Power: 150W

Channel Output: 0 - 30V / 0 - 5A × 1-CH

Display :3.7 inch color LCD display

Dimension: 117mm(L) × 194mm（H）× 295mm（D）

Weight: Approx. 2.30 kg

Interface: RS232

MEASUREMENT

Rated Output （0℃-40℃）: Voltage 0 - 30V/ Current 5A

Load Regulation: Voltage ≤30mV/ Current ≤50mA

Line Resolution: Voltage ≤10mA/ Current ≤20mA

Setting Resolution: Voltage 10mV/ Current 10mA

Readback Resolution: Voltage 10mV/ Current 10mA

Settings Accuracy (within 12 months) (25℃±5℃): Voltage ≤0.3% + 10mV/ Current ≤0.3% + 20mA

Readback Accuracy （25℃±5℃): Voltage ≤0.3% + 10mV/ Current ≤0.3% + 20mA

Ripple/Noise （20Hz-20MHz）

Voltage （Vp-p） ≤30mVp-p

Voltage （rms） ≤3mVrms

Current （rms） ≤30mArms

Output Temperature （0℃-40℃）

Voltage ≤0.3% + 10mV

Current ≤0.3% + 20mA

Readback Temperature Coefficient

Voltage ≤0.3% + 10mV

Current ≤0.3% + 20mA

Response Time: ≤1.0ms

Storage: 5 groups of data

Working Temperature: 0-40℃

Accessories

Power Cord

Manual

Fuse

RS232 to USB Module( optional )

Test Leads(optional)
