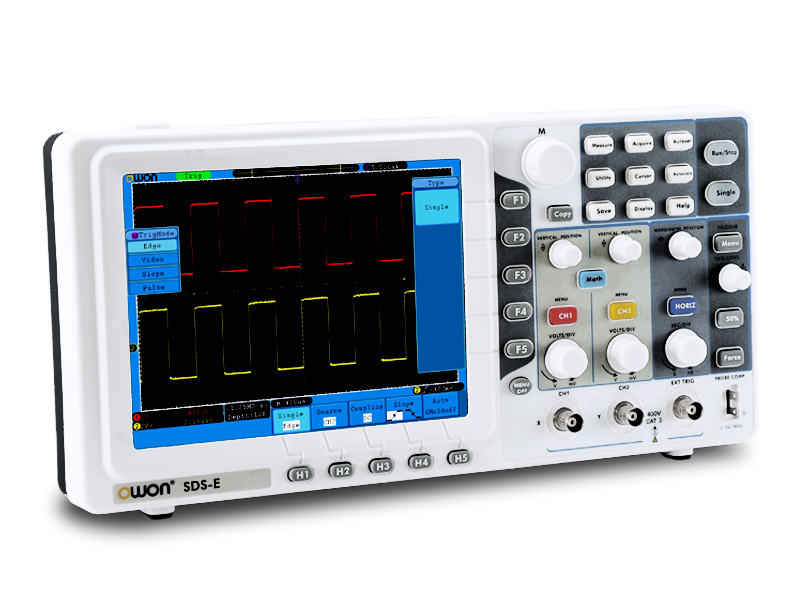

OWON SDS7102E OWON SDS7102E Digital Oscilloscope (2CH, 100MHz, 1GS/s)

Bandwidth:100MHz

Sample Rate:1GS/s

Horizontal Scale (s/div): 2ns/div～100s/div, step by 1~2~5

Channel:2+1 (external)

Display: 8”color LCD, 800 x 600 pixels

Record Length: 1M (optional 10M)

Vertical Resolution (A/D):8 bits (2 channels simultaneously)

Vertical Sensitivity:2mV/div～10V/div (at input)

Trigger Type:Edge, Pulse, Video, Slope, and Alternate

Trigger Mode:Auto, Normal, and Single

Waveform Math:＋, －, ×, ÷, invert, FFT

Communication Interface: USB host, USB device, Pass / Fail, LAN, VGA (optional)

Battery: not supported

Dimension (W × H × D): 348 × 170 × 78 (mm)

Weight (without package): 1.50 kg

Accessories: Power Cord, CD Rom, Manual, USB Cable, Probe, Probe Adjustment, Soft Bag
