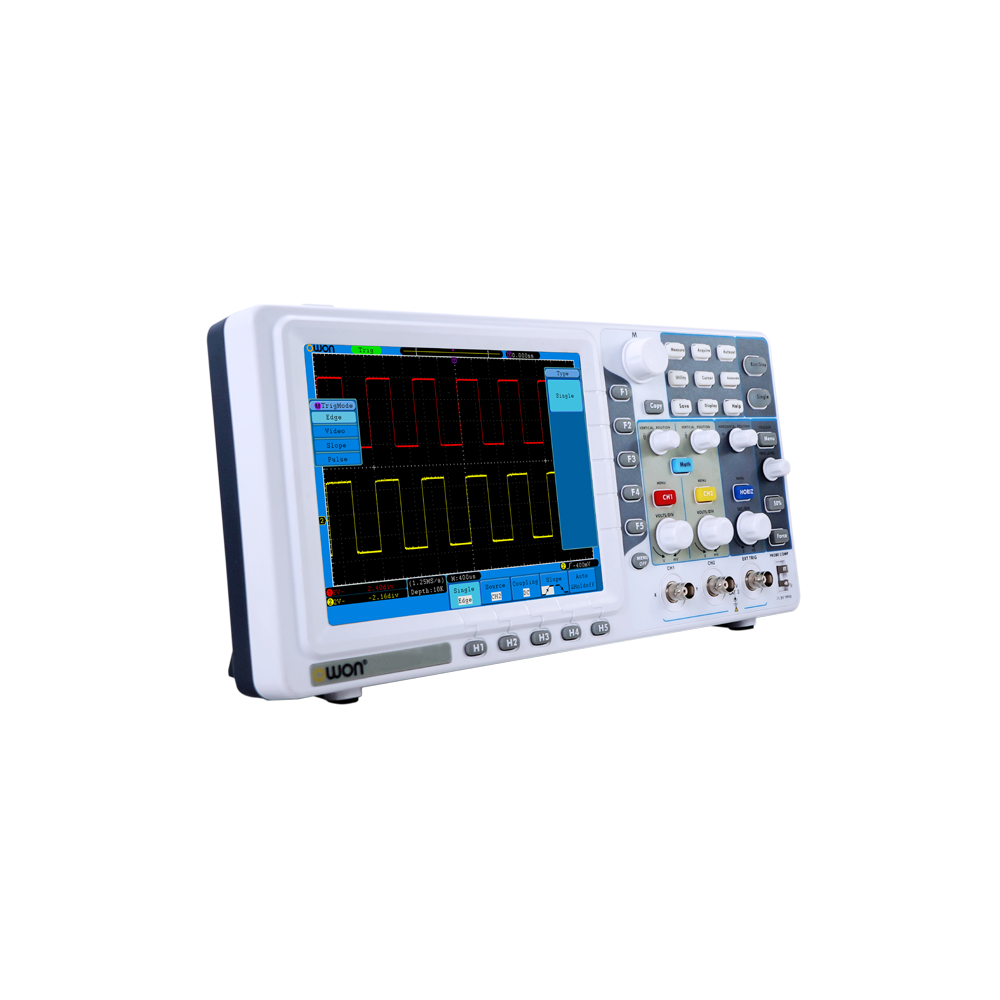

OWON SDS7072E Digital Oscilloscope (70MHz; 1GS/s)

 Bandwidth: 70MHz

 Sample Rate (real time): 1GS/s

 Horizontal Scale (s/div): 2ns/div～100s/div,  step by 1~2~5

 Channel: 2 + 1 (external)

 Display: 8" color LCD, 800 × 600 pixels

 Record Length: 1M

 Vertical Resolution (A/D): 8 bits (2 Channels simultaneously)

 Vertical Sensitivity: 2mV/div～10V/div (at input)

 Trigger Type: Edge, Pulse, Video, Slope, and Alternate

 Trigger Mode: Auto, Normal, and Single

 Waveform Math: ＋, －, ×, ÷, invert, FFT

 Communication Interface: USB host, USB device, Pass / Fail, LAN, and VGA (optional)

 Battery: not supported

 Dimension (W×H×D): 348 × 170 × 78 (mm)

 Weight (without package): 1.50 kg

Datasheet
