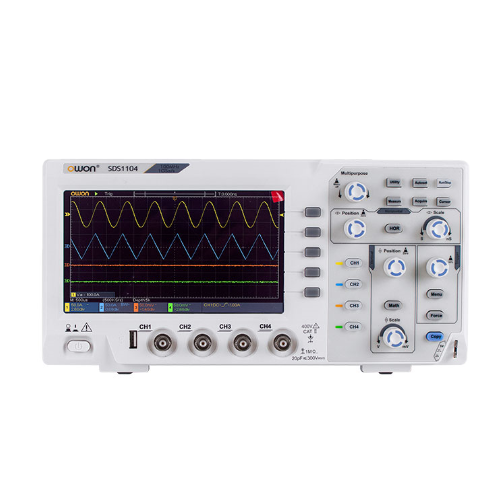

OWON SDS1104 Digital Oscilloscope (100MHz, 4 CH, 1 GS/s)

Bandwidth: 100 MHz

Sample rate : 1 GS/s

Horizontal Scale: 2 ns/div – 1000 s/div, step by 1 – 2 - 5

Channel: 4 channels

Display: 7" Colored LCD, 800 x 480 pixels

Record length: 20K

Probe Attenuation Factor: 1X, 10X, 100X, 1000X

Input coupling: DC, AC , Ground

Vertical Sensitivity: 5 mV/div – 5 V/div

Trigger type: Edge, Video

Trigger mode: Auto, Normal, Single

Waveform Math: ＋, －, ×, ÷, invert, FFT

Waveform storage: 16 waveforms

Communication interface: USB host, USB device

Power supply: 100 - 240 VACRMS, 50/60 Hz, CATⅡ

Fuse: 2 A, T class, 250 V

Dimension: 301 mm× 152 mm×70 mm (L*H*W)

Weight: About 1.1 kg
