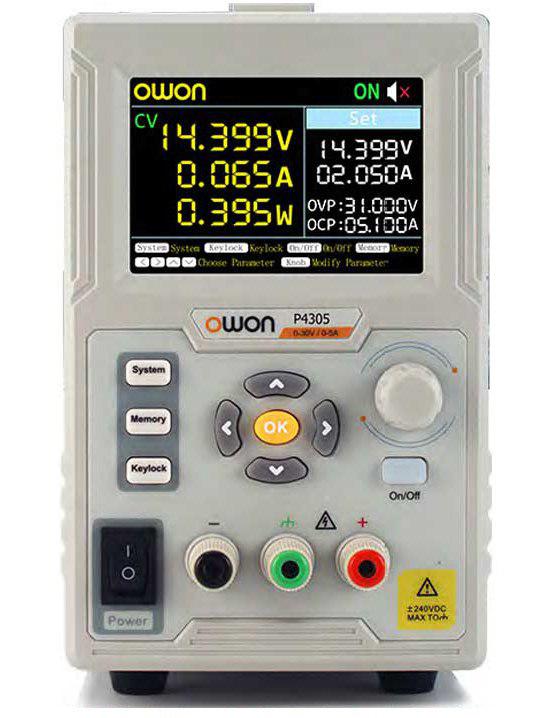

OWON P4305 DC Power Supply (0 - 30V / 0 - 5A × 1-CH)

Channel Single Channel Output
Total Output Power 150W
Channel Output 0 - 30V / 0 - 5A × 1-CH
Display 3.7 inch color LCD display
Dimension 117mm(L) × 194mm（H）× 295mm（D）
Weight Approx. 5.6 kg
Interface RS232
Load Regulation Voltage ≤0.01%+3mV
Current ≤0.01% + 3mA
Power Regulation Voltage ≤0.01% + 3mV
Current ≤0.01% + 3mA
Setting Resolution Voltage 1mV
Current 1mA
Readback Resolution Voltage 1mV
Current 1mA
Setpoint accuracy
（within 12 month）
（25℃±5℃） Voltage ≤0.03% + 10mV
Current ≤0.1% + 5mA
Accessories
Power Cord
user Manual
Fuse
Test Leads (optional)
RS232 TO USB Module ( optional )
