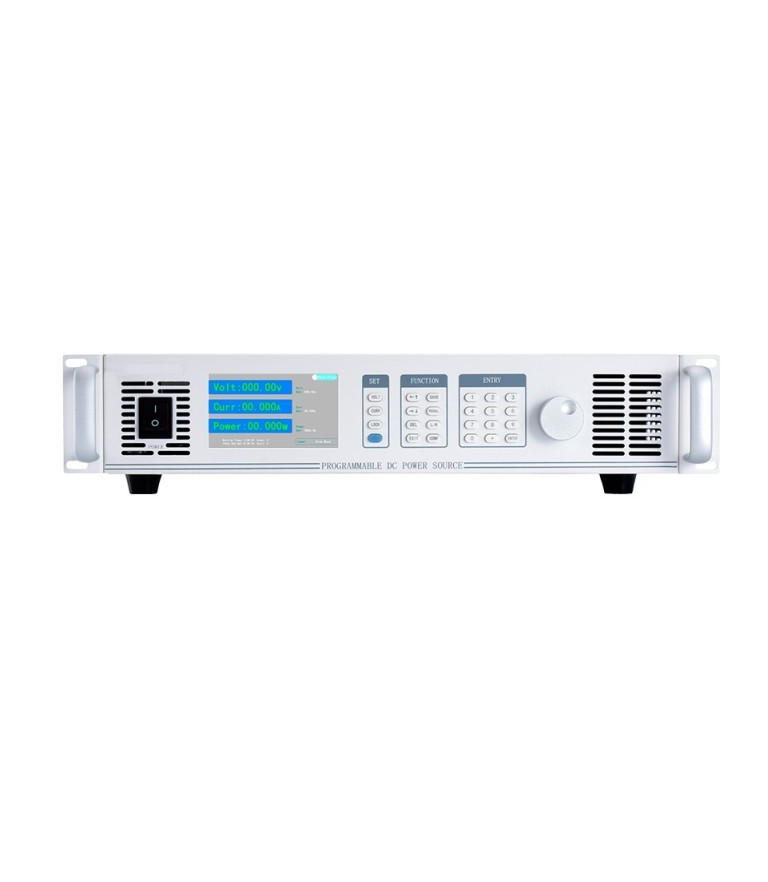

OWON OWP3008H High Power DC Power Supply (80V, 60A, 3000W)

Voltage: 80V

Current: 60A

Power: 3000W

Interface: CAN, RS485, Dry Node/Analog(optional)

Power Supply: 1Φ220VAC±10%；50-60HZ

DC Voltage

Output voltage accuracy: ＜0.1% of rated value

Load Regulation: ＜0.05% of rated value

linear Regulation ±10% ΔUAC: ＜0.05% of rated value

Adjustment time with 10-100% load: ＜5ms

Slew rate10-90%: ＜20ms-60s

Voltage Compensation: ＜5% rated voltage

Ripple: ＜0.1% of rated value

DC Current

Output current accuracy: ＜0.15% of rated value+20mA

Load Regulation 1-100%: ＜0.1% of rated value

linear Regulation ±10% ΔUAC: ＜0.05% of rated value

Power accuracy: ＜0.3% of rated value

Insulation

AC Input to enclosure: 1500VDC

AC input to DC output: 1500VDC

DC output to enclosure (PE): 500VDC

Other

Protection: OVP, OCP, OLP, OTP

Dry contact input/out put

Dry contact input

Dry contact out put

Cooling methods: Air cooling

Operating Temperature: -5℃-45℃

Storage Temperature: -20℃-60℃

Relative humidity: ＜80%，NO condensation

Dimension(W*H*D): 425*88*450mm

Weight: 14KG
