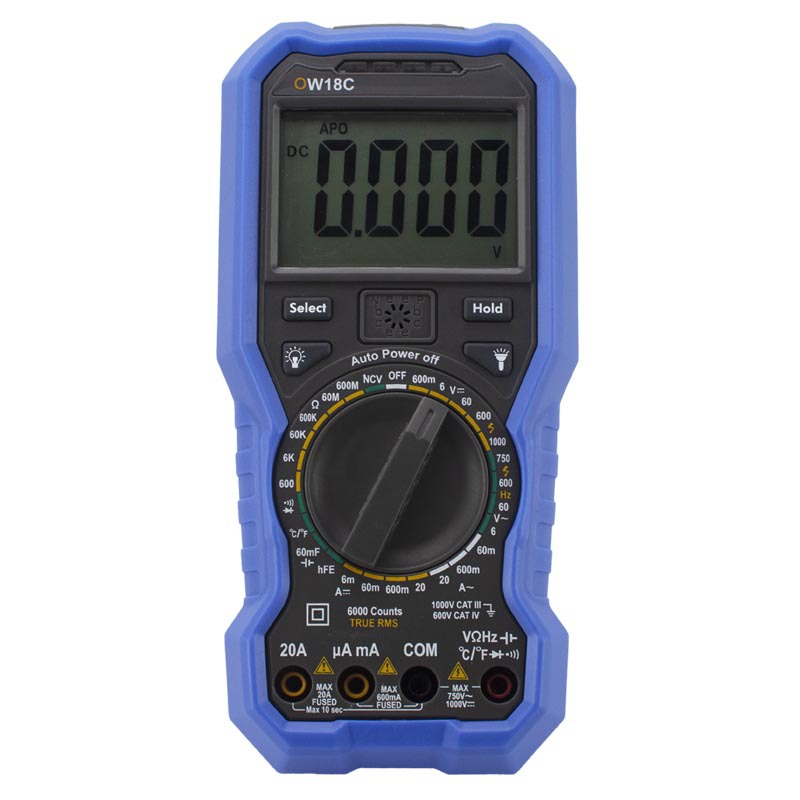

OWON OW18C Digital Multimeter

Measurement

DC Voltage (V) mV: 600mV/ V: 6~1000V

AC Voltage (V) 6V ~750V

DC Current (A) mA: 6mA~60mA/ A: 20.00A

AC Current (A) mA: 60mA~600mA/ A: 20.00A

Resistance (Ω) 600Ω~600MΩ

Capacitance (F) 6nF - 60mF

Frequency: 10Hz - 10KHz

Temperature (°C/°F) －20 ℃ - 1000 ℃/ －4 °F - 1832 °F

Display 5999

Frequency Response 40Hz - 1kHz

True RMS √

LCD Backlight √

Diode Test √

Flashlight √

Auto Power-off √

Input Protection √

On-off Warning √

Low-battery Indicator √

NCV √

Data Hold √

Safety Compliance 600V, CAT IV / 1000V, CAT III

Dimension (W / H / D) 196 x 88.50 x 56 (mm)

Battery 1 x 9V 6FF22 battery

Weight (without package) 0.31 kg

Accesories:

Multimeter Leads

K-type Thermocouple

Manual

Screwdriver

Alligator Clip(optional)

9V Battery (optional)
